BL1223 Leaf Chain | ANSI BL 2X3 Chain 1.5" Pitch - 10ft Box

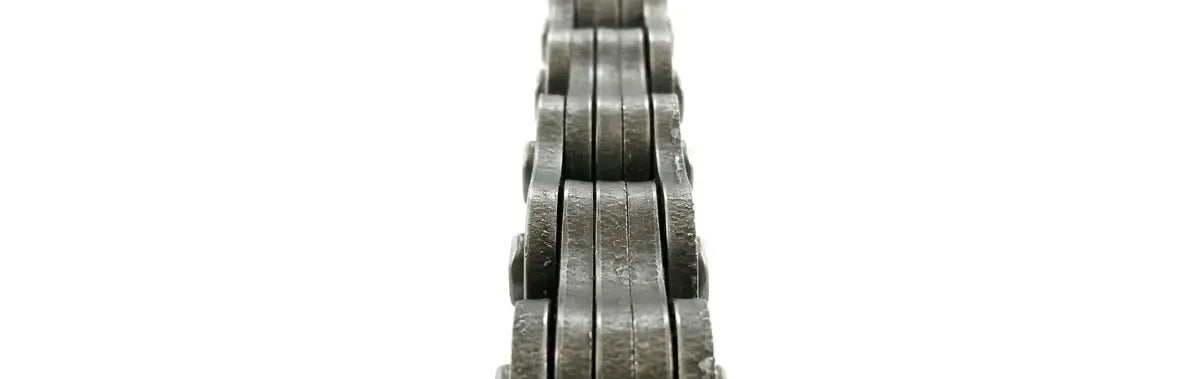

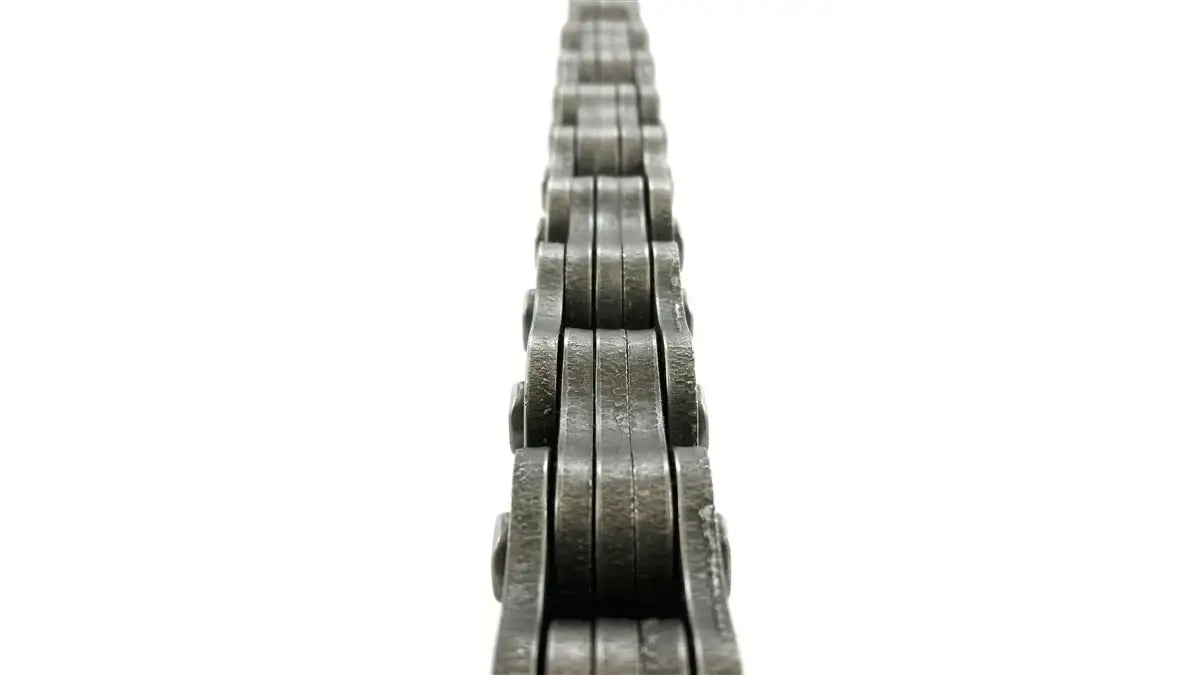

BL1223 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL1223 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 2X3 lacing and is supplied as 10ft boxes, reels (25ft - 200ft), and cut to length sections upon request.

Standard Series Specifications:

• Chain Size: BL1223
• Pitch (P): 1.500"
• Pin Diameter (A): 0.500"
• Plate thickness (B): 0.219"
• Plate Height (C): 1.425"
• Pin Length (D): 1.335"
• Chain Weight: 4.39 LBS/ Ft
• Tensile Strength: 43,150 LBS

For customers needing something a little stronger, we also stock a premium (Premier Series) BL1223 Leaf chain. The primary differences between the standard series and the Premier Series of leaf chains is that the premier series offers published working loads on most sizes, higher precision components, shot peened plates, heat-treated plates and pins, and is the best quality leaf chain that we offer. One common misconception in the industry is that higher tensile strengths mean higher working loads, this is not always true when taking performance factors into consideration.

Premier Series Specifications:

• Chain Size: BL1223
• Pitch (P): 1.500"
• Pin Diameter (A): 0.500"
• Plate thickness (B): 0.219"
• Plate Height (C): 1.425"
• Pin Length (D): 1.335"
• Chain Weight: 4.39 LBS/ Ft
• Minimum Tensile Strength: 41,800 LBS
• Working Load: 8,250 LBS

Although the BL1223 leaf chain is less prevalent than other BL series chains, it can be utilized in demanding hoisting, lifting, and material handling applications. The load capacity makes it suitable for port cargo handling equipment, including fork trucks, chassis flippers, top loaders, saddle trucks, side handlers, loaded container handlers, and material handlers.

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL1223 Leaf Chain please contact us and we will be happy to assist you.
