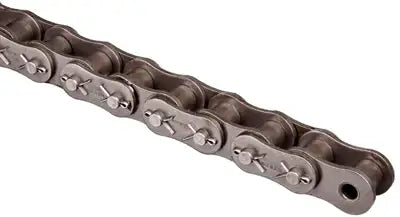

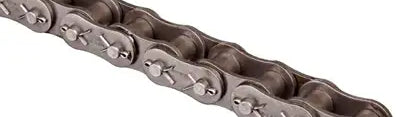

#160H Oilfield Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: API-160H-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#160H Oilfield Roller Chain Features
#160H Oilfield Roller Chain Specifications
#160H Oilfield Roller Chain is manufactured in accordance to ANSI Standards dimensionally but is API Certified to run in oilfield applications. This API 160H roller chain features solid bushings and solid rollers along with wide waist side-plates for optimal performance and maximum fatigue strength. API certified chains undergo certain process and manufacturing techniques that appease the American Petroleum Institute (API) for optimal performance and longevity in oilfield applications, this is what separates an API Certified Chain versus just an ANSI chain. For more information or to get a quote on 160H oilfield roller chain please contact us and we will be happy to assist you.
160H Oilfield Roller Chain Dimensions
- Chain Size: 160H API
- Pitch (P): 2.000"
- Inside Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Pin Diameter (D): 0.562"
- Link Plate Thickness (T): 0.281"
- Plate Height (H): 1.839"
- Chain to Riv. Pin End (LR): 1.339"
- Chain to Cot. Pin End (LC): 1.535"
- Rated Working Load: 14,900 LBS
- Average Ultimate Strength: 68,700 LBS
- Chain Weight: 7.28 LBS/ FT
- Chain Size: 160H API
- Pitch (P): 2.000"
- Inside Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Pin Diameter (D): 0.562"
- Link Plate Thickness (T): 0.281"
- Plate Height (H): 1.839"
- Chain to Riv. Pin End (LR): 1.339"
- Chain to Cot. Pin End (LC): 1.535"
- Rated Working Load: 14,900 LBS
- Average Ultimate Strength: 68,700 LBS
- Chain Weight: 7.28 LBS/ FT
