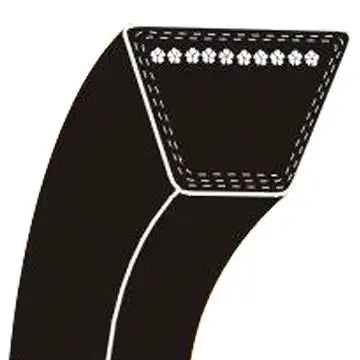

A22 V-Belt - A-Section 24" A22 Belt (4L240 Belt)
A22 V-Belt - A-Section 24" A22 Belt (4L240 Belt)
Note:
Custom Cut to Length Chain Also Available
Product Code: A22-V-BELT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Don't compromise on quality when you can have low prices and productivity together at last with a 24-inch V belt from USA Roller Chain. Each belt comes with a design that meets the demands of your system's specifications, from a 40-degree angle shape to 24-inch outside length. Fit this 4L240 V belt into any budget because it saves you money over time. The outside cover is a cotton-poly blend that mixes flexibility with durability. Choose the A22 V belt for its internal design too. High-strength polyester cords ensure that the A22 belt remains strong and resilient over the years.
ARPM standards aren't overlooked with the 4L240 belt design either. Feel confident with the belt as natural oils and heat are quickly resisted by the clever design. Our stock is known to withstand harsh conditions while offering a budget-friendly option for your bottom line. Try one or several A22 belts today.
A22 V-Belt Construction:
- Cover - High-quality cotton/ polyester blend
- Compound - Natural rubber/ styrene-butadiene rubber (SBR)
- Cord - High-strength polyester
A22 V-Belt Dimensions
- Belt Size: A22
- Top Width: 0.66"
- Thickness: 0.41"
- Angel: 40 Degrees
- Outside Length: 24"
- Weight: 0.15 LBS
- Interchanges: A-22, 4L240
A22 V-Belt Pulleys
Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.AK V-Belt Pulleys:
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| AK17 | 1.75" | 1.50" | 1.16" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.2 LBS |
| AK20 | 2.00" | 1.80" | 1.46" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.3 LBS |
| AK21 | 2.10" | 1.90" | 1.56" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.4 LBS |
| AK22 | 2.20" | 2.00" | 1.66" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK23 | 2.30" | 2.10" | 1.76" | 1 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK25 | 2.50" | 2.30" | 1.96" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK26 | 2.60" | 2.40" | 2.06" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.5 LBS |
| AK27 | 2.70" | 2.50" | 2.16" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.6 LBS |
| AK28 | 2.80" | 2.60" | 2.26" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK30 | 3.05" | 2.80" | 2.46" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK32 | 3.25" | 3.00" | 2.66" | 2 | 21/32" | 15/16" | 7/16" | 5/32" | 0.7 LBS |
| AK34 | 3.45" | 3.20" | 2.86" | 2 | 21/32" | 15/16" | 7/16" | 5/32" |
0.9 LBS |
| AK39 | 3.75" | 3.50" | 3.16" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.4 LBS |
| AK41 | 3.95" | 3.70" | 3.36" | 2 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK44 | 4.25" | 4.00" | 3.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK46 | 4.45" | 4.20" | 3.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.5 LBS |
| AK49 | 4.75" | 4.50" | 4.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK51 | 4.95" | 4.70" | 4.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.7 LBS |
| AK54 | 5.25" | 5.00" | 4.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.8 LBS |
| AK56 | 5.45" | 5.20" | 4.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 1.9 LBS |
| AK59 | 5.75" | 5.50" | 5.16" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.0 LBS |
| AK61 | 5.95" | 5.70" | 5.36" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.1 LBS |
| AK64 | 6.25" | 6.00" | 5.66" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.2 LBS |
| AK66 | 6.45" | 6.20" | 5.86" | 3 | 3/4" | 1-5/32" | 15/32" | 1/16" | 2.3 LBS |
| AK69 | 6.75" | 6.50" | 6.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.5 LBS |
| AK71 | 6.95" | 6.70" | 6.36" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK74 | 7.25" | 7.00" | 6.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.4 LBS |
| AK79 | 7.75" | 7.50" | 7.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.0 LBS |
| AK84 | 8.25" | 8.00" | 7.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 3.8 LBS |
| AK89 | 8.75" | 8.50" | 8.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.3 LBS |
| AK94 | 9.25" | 9.00" | 8.68" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 4.5 LBS |
| AK99 | 9.75" | 9.50" | 9.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.3 LBS |
| AK104 | 10.25" | 10.00" | 9.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.1 LBS |
| AK109 | 10.75" | 10.50" | 10.16" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.8 LBS |
| AK114 | 11.25" | 11.00" | 10.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 5.6 LBS |
| AK124 | 12.25" | 12.00" | 11.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 6.5 LBS |
| AK134 | 13.25" | 13.00" | 12.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 7.5 LBS |
| AK144 | 14.25" | 14.00" | 13.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 8.5 LBS |
| AK154 | 15.25" | 15.00" | 14.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- | 9.8 LBS |
| AK184 | 18.25" | 18.00" | 17.66" | 3 | 3/4" | 1-15/32" | 23/32" | -- |
12.1 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Pulley Weight |
|---|---|---|---|---|---|---|---|---|---|
| 2AK20 | 2.00" | 1.80" | 1.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.8 LBS |
| 2AK21 | 2.15" | 1.90" | 1.56" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK22 | 2.25" | 2.00" | 1.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 0.9 LBS |
| 2AK23 | 2.35" | 2.10" | 1.76" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.1 LBS |
| 2AK25 | 2.55" | 2.30" | 1.96" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.3 LBS |
| 2AK26 | 2.65" | 2.40" | 2.06" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.4 LBS |
| 2AK27 | 2.75" | 2.50" | 2.16" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.5 LBS |
| 2AK28 | 2.85" | 2.60" | 2.26" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK30 | 3.05" | 2.80" | 2.46" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 1.8 LBS |
| 2AK32 | 3.25" | 3.00" | 2.66" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.1 LBS |
| 2AK34 | 3.45" | 3.20" | 2.86" | 1 | 1-3/8" | 1-21/32" | 15/32" | 3/16" | 2.3 LBS |
| 2AK39 | 3.75" | 3.50" | 3.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.6 LBS |
| 2AK41 | 3.95" | 3.70" | 3.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 2.9 LBS |
| 2AK44 | 4.25" | 4.00" | 3.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.0 LBS |
| 2AK46 | 4.45" | 4.20" | 3.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.1 LBS |
| 2AK49 | 4.75" | 4.50" | 4.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK51 | 4.95" | 4.70" | 4.36" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.8 LBS |
| 2AK54 | 5.25" | 5.00" | 4.66" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.3 LBS |
| 2AK56 | 5.45" | 5.20" | 4.86" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.4 LBS |
| 2AK59 | 5.75 " | 5.50" | 5.16" | 2 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.5 LBS |
| 2AK61 | 5.95" | 5.70" | 5.36" | 3 | 1-3/8" | 1-11/32" | 15/32" | 1/2" | 3.6 LBS |
| 2AK64 | 6.25" | 6.00" | 5.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 4.8 LBS |
| 2AK74 | 7.25" | 7.00" | 6.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 5.6 LBS |
| 2AK84 | 8.25" | 8.00" | 7.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 6.4 LBS |
| 2AK94 | 9.25" | 9.00" | 8.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 7.3 LBS |
| 2AK104 | 10.25" | 10.00" | 9.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 8.1 LBS |
| 2AK114 | 11.25" | 11.00" | 10.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.0 LBS |
| 2AK124 | 12.25" | 12.00" | 11.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 9.8 LBS |
| 2AK134 | 13.25" | 13.00" | 12.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 12.3 LBS |
| 2AK144 | 14.25" | 14.00" | 13.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 13.9 LBS |
| 2AK154 | 15.25" | 15.00" | 14.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" | 14.3 LBS |
| 2AK184 | 18.25" | 18.00" | 17.66" | 3 | 1-3/8" | 1-19/32" | 11/32" | 1/8" |
17.4 LBS |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK30H | 3.05" | 2.80" | 2.46" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.2 |
| AK32H | 3.25" | 3.00" | 2.66" | 1 | 1-13/16" | 3/4" | 1-1/4" | 7/8" | -- | 1-3/16" | 7/16" | 3/16" | 0.3 |
| AK34H | 3.45" | 3.20" | 2.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.4 |
| AK39H | 3.75" | 3.50" | 3.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.5 |
| AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.6 |
| AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.7 |
| AK59H | 5.75" | 5.50" | 5.16" | 2 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | -- | 7/8" | 7/16" | 3/16" | 0.9 |
| AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.4 |
| AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK66H | 6.45" | 6.20" | 5.86" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK69H | 6.75" | 6.50" | 6.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.5 |
| AK71H | 6.95" | 6.70" | 6.36" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.7 |
| AK79H | 7.75" | 7.50" | 7.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.8 |
| AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 1.9 |
| AK89H | 8.75" | 8.50" | 8.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.0 |
| AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.1 |
| AK99H | 9.75" | 9.50" | 9.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.2 |
| AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 2.3 |
| AK109H | 10.75" | 10.50" | 10.16" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.5 |
| AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.0 |
| AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 3.8 |
| AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" | 4.3 |
| AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 3/4" | 1-1/4" | 9/16" | 0" | 7/8" | 7/16" | 3/16" |
4.5 |
| Size | Outside Diameter | Pitch Diameter (4L/A) | Pitch Diameter (3L) | Type | Dimension (O.L.) | Dimension (F) | Dimension (L) | Dimension (P) | Dimension (C) | Dimension (X) | Dimension (G) | Dimension (E) | Pulley Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2AK30H | 3.05" | 2.80" | 2.46" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.4 |
| 2AK32H | 3.25" | 3.00" | 2.66" | 1 | 2-7/16" | 1-3/8" | 1-1/4" | 7/8" | 15/16" | 7/8" | 7/16" | 3/16" | 1.7 |
| 2AK34H | 3.45" | 3.20" | 2.86" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK39H | 3.75" | 3.50" | 3.16" | 1 | 2" | 1-3/8" | 1-1/4" | 7/16" | 1/2" | 7/8" | 7/16" | 3/16" | 1.8 |
| 2AK41H | 3.95" | 3.70" | 3.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 1.9 |
| 2AK44H | 4.25" | 4.00" | 3.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.4 |
| 2AK46H | 4.45" | 4.20" | 3.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 2.5 |
| 2AK49H | 4.75" | 4.50" | 4.16" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.1 |
| 2AK51H | 4.95" | 4.70" | 4.36" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.2 |
| 2AK54H | 5.25" | 5.00" | 4.66" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK56H | 5.45" | 5.20" | 4.86" | 2 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | -- | 7/8" | 7/16" | 3/16" | 3.6 |
| 2AK59H | 5.75" | 5.50" | 5.16" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.4 |
| 2AK61H | 5.95" | 5.70" | 5.36" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.3 |
| 2AK64H | 6.25" | 6.00" | 5.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 3.9 |
| 2AK74H | 7.25" | 7.00" | 6.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 4.9 |
| 2AK84H | 8.25" | 8.00" | 7.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 5.8 |
| 2AK94H | 9.25" | 9.00" | 8.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 6.1 |
| 2AK104H | 10.25" | 10.00" | 9.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 7.7 |
| 2AK114H | 11.25" | 11.00" | 10.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 8.5 |
| 2AK124H | 12.25" | 12.00" | 11.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 9.5 |
| 2AK134H | 13.25" | 13.00" | 12.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK144H | 14.25" | 14.00" | 13.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 11.9 |
| 2AK154H | 15.25" | 15.00" | 14.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 13.3 |
| 2AK184H | 18.25" | 18.00" | 17.66" | 3 | 1-1/2" | 1-3/8" | 1-1/4" | 1/16" | 0" | 7/8" | 7/16" | 3/16" | 16.8 |
