857 Chain

Specialty Chain > Engineering Class Chains > Steel Bushed Chains > 857 Steel Bushed Chain

857 Chain

Note: Custom Cut to Length Chain Also Available
SKU: 857-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714882011503" , "metafield_value":""}]
857 Chain Features
857 Chain Specifications
This 857 chain is a high quality, high strength steel bushed chain that is extremely durable. 857 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 857 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

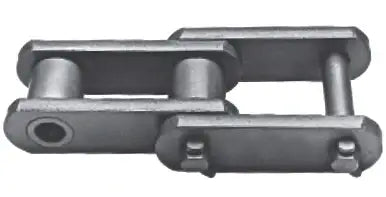

857 Chain
  • Chain Size: 857
  • Pitch: 6.00"
  • Overall Width (A): 6.13"
  • Dimension (B): 3.25"
  • Dimension (C): 2.88"
  • Inside Width (E): 3.00"
  • Bushing Diameter (D): 1.75"
  • Bushing Style: Full Round
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Heat-Treated and Induction-Hardened
  • Pin Style: Full Round
  • Sidebar Height (H): 3.25"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Alloy Heat-Treated
  • Average Ultimate Strength: 175,000 LBS
  • Maximum Working Load: 14,000 LBS
  • Weight Per Foot: 21.0 LBS
