• 856 K35 Attachment
1 1

856 K35 Attachment

856 K35 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: 856-K35-ATTACHMENT
Shipping calculated at checkout.
View full details
Description
Specification

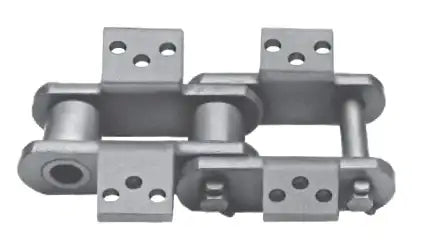

This 856 K35 attachment is a premium high-strength attachment that is manufactured specifically for 856 chain and can be assembled in any configuration needed. To get a quote for 856 chain with K35 attachments or for more information please contact us and we will be happy to assist you!

Dimensions:
856 K35 Attachment
  • Attachment Type: 856 K35
  • Dimension (N): 3.63"
  • Dimension (R): 5.88"
  • Dimension (F): 6.75"
  • Dimension (L): 1.25"
  • Dimension (Q): 2.50"
  • Dimension (S): 6.44"
  • Dimension (P): 1.75"
  • Bolt Diameter (K): 0.63"
  • Dimension (J): 1.88"
  • Dimension (T): 0.50"
  • Dimension (V): 1.25"
  • Weight Per Foot: 27.5 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"

Feature

  • High Quality Attachment
  • Can Be Assembled In Any Configuration
  • Extremely Durable
  • High Resistance to Abrasion
  • Ultra High Strength
Featured image
  • Attachment Type: 856 K35
  • Dimension (N): 3.63"
  • Dimension (R): 5.88"
  • Dimension (F): 6.75"
  • Dimension (L): 1.25"
  • Dimension (Q): 2.50"
  • Dimension (S): 6.44"
  • Dimension (P): 1.75"
  • Bolt Diameter (K): 0.63"
  • Dimension (J): 1.88"
  • Dimension (T): 0.50"
  • Dimension (V): 1.25"
  • Weight Per Foot: 27.5 LBS
