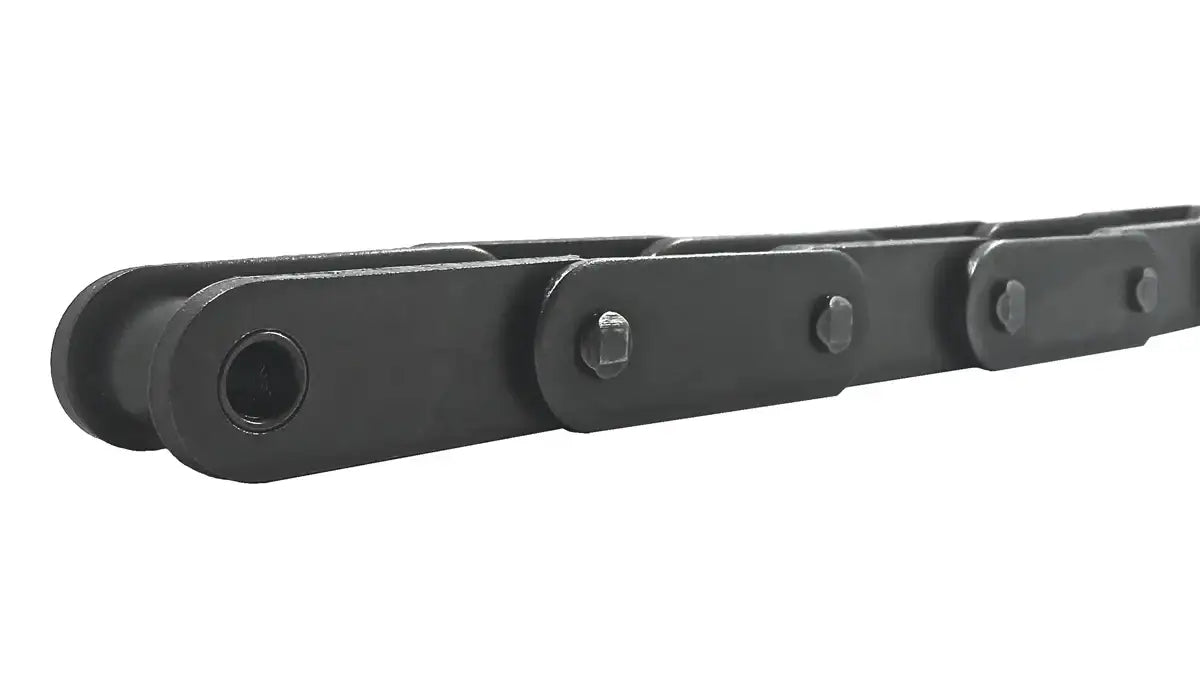

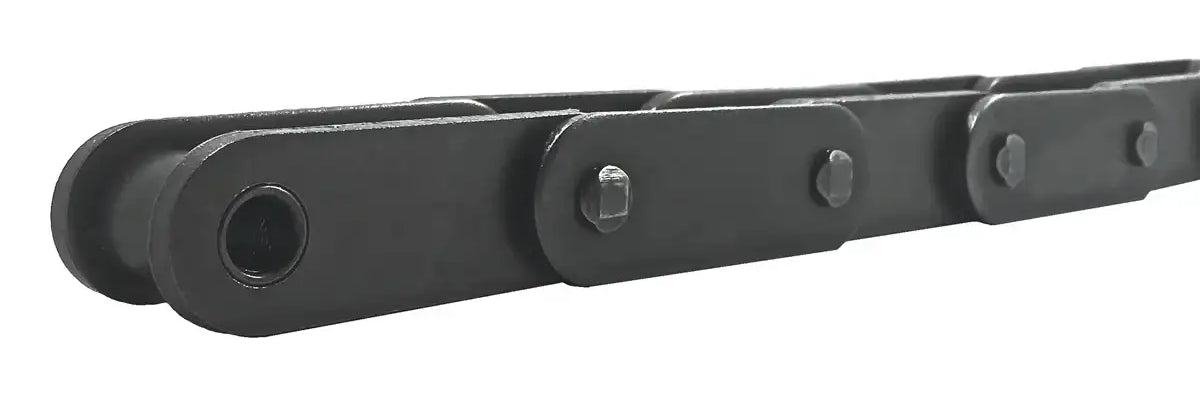

81XHT Roller Chain

81XHT Roller Chain is manufactured for heavy-duty conveying applications that require a high strength 81X series chain. This chain is also commonly referred to as 81XHT heavy, hence the "H" in the part number. Basically it is a heavier duty version of the popular 81X chain and boasts a high tensile strength, thicker side-plates, quad-staked pins, and uses a solid bushing solid roller (SBR) design to ensure you are getting the best wear life out of this chain. Our 81XHT roller chain also implements heat-treated components such as the pins, bushings, side-plate, and rollers to further increase the working life and strength of the chain.

81XHT Roller Chain Dimensions

• Chain #: 81XHT
• Pitch (P): 2.609"
• Roller Width (W): 1.060"
• Roller Diameter (R): 0.906"
• Plate Height (H): 1.125"
• Plate Thickness (T): 0.220"
• Pin Diameter (D): 0.437"
• Overall Chain Width: 2.557"
• Tensile Strength: 34,000 LBS
• Weight Per Foot: 3.8 LBS

Not only do we supply the chain, but we also have a wide variety of 81X sprockets as well as a full line of attachments available for 81X chains. For more information or to get a formal quote on 81XHT roller chain please contact us and we will be happy to assist you.
