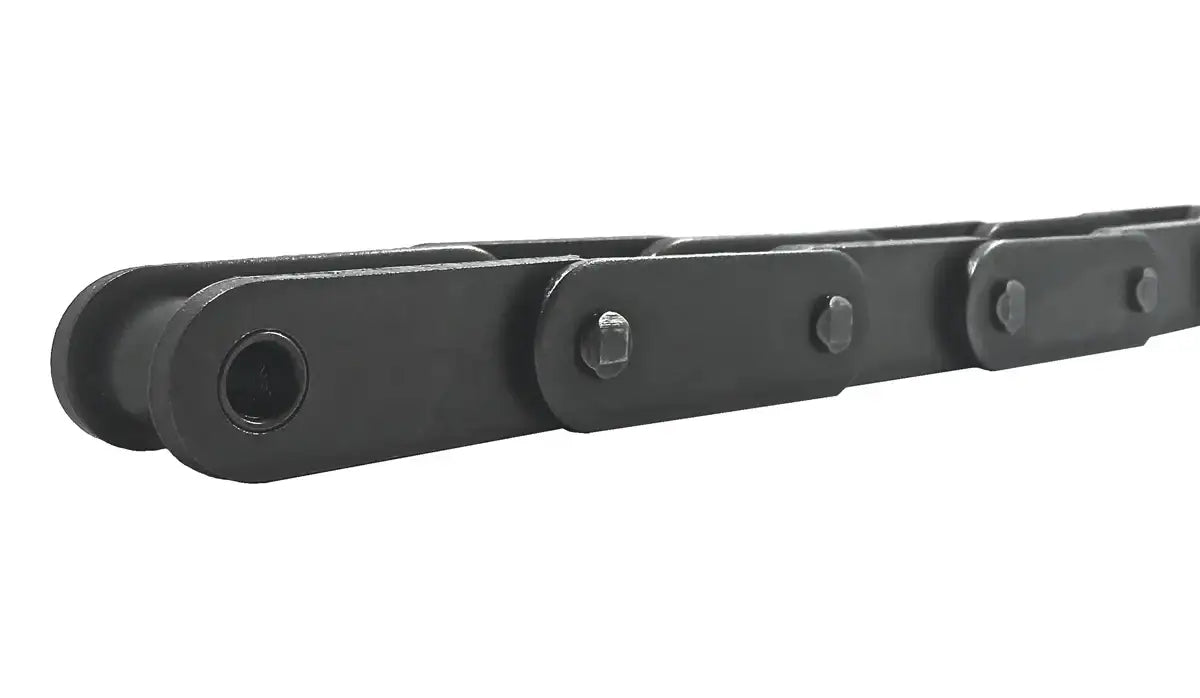

Heavy Duty 81XHS Roller Chain

Heavy Duty 81XHS Roller Chain is manufactured for heavy-duty conveying applications that require a high strength 81X series chain. This chain is also commonly referred to as 81XH special, hence the "S" at the end of the part number. Basically, it is a heavier duty version of the popular 81X chain and boasts a high tensile strength, thicker side-plates, quad-staked pins, and uses a solid bushing solid roller (SBR) design to ensure you are getting the best wear life out of this chain. Our 81XHS roller chain also implements heat-treated components such as the pins, bushings, side-plate, and rollers to further increase the working life and strength of the chain.

81XHS Roller Chain Dimensions

• Chain #: 81XHS
• Pitch (P): 2.609"
• Roller Width (W): 1.062"
• Roller Diameter (R): 0.906"
• Plate Height (H): 1.264"
• Plate Thickness (T): 0.312"
• Pin Diameter (D): 0.437"
• Overall Chain Width: 1.430"
• Tensile Strength: 42,000 LBS
• Weight Per Foot: 4.60 LBS

Not only do we supply the chain, but we also have a wide variety of 81X sprockets as well as a full line of attachments available for 81X chains. For more information or to get a formal quote on 81XHS roller chain please contact us and we will be happy to assist you.
