Extra Heavy Duty 81XHH Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
$214.99
SKU: 81XHH-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Extra Heavy Duty 81XHH Chain 10ft Box Features
Extra Heavy Duty 81XHH Chain 10ft Box Specifications

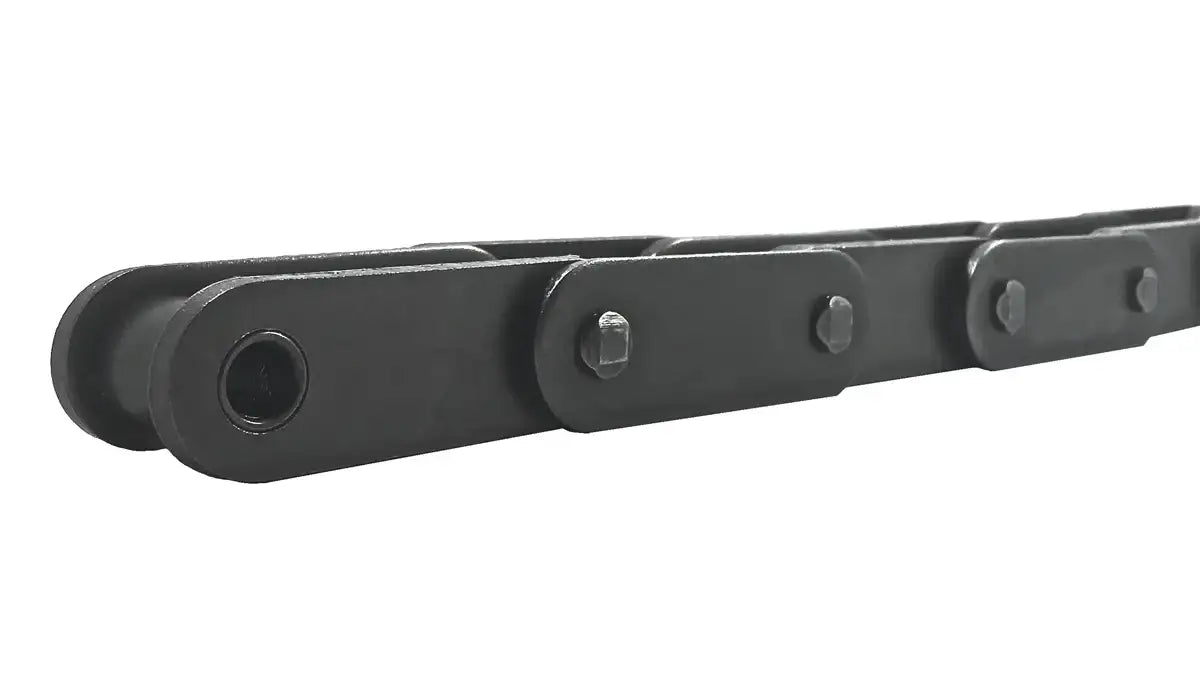

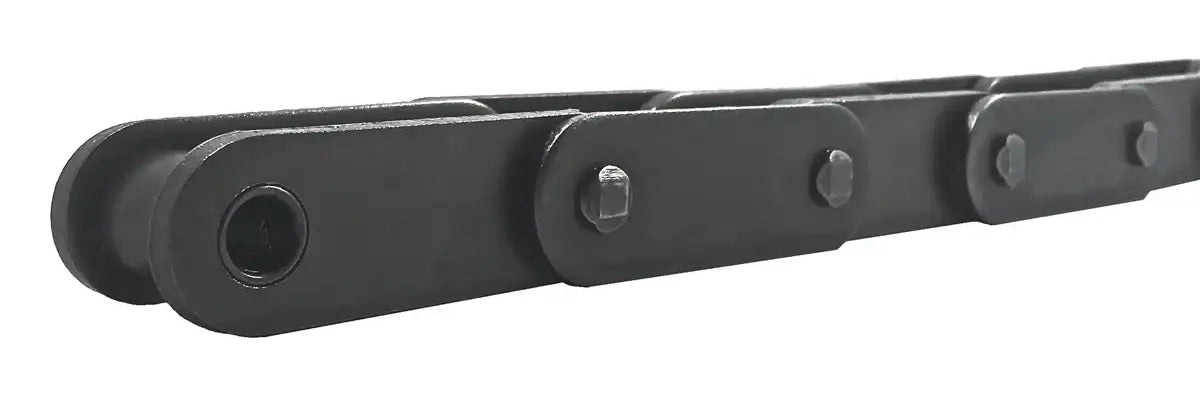

Extra Heavy Duty 81XHH Roller Chain is manufactured for heavy-duty conveying applications that require a super high strength 81X series chain. It is the absolute strongest version of the 81X chain on the market and boasts an extremely high tensile strength, thick side plates, and quad-staked pins; It uses a solid bushing solid roller (SBR) design to ensure you are getting the best wear life out of this chain. Our 81XHH roller chain also implements heat-treated components such as pins, bushings, side plates, and rollers to increase the chain's working life and strength.
Not only do we supply the chain, but we also have a wide variety of 81X sprockets and a full line of attachments available for 81X chains. For more information or to get a formal quote on the 81XHH roller chain, please contact us, and we will be happy to assist you.
81XHH Roller Chain Dimensions
- Chain #: 81XHH
- Pitch (P): 2.609"
- Roller Width (W): 1.062"
- Roller Diameter (R): 0.905"
- Plate Height (H): 1.122"
- Plate Thickness (T): 0.312"
- Pin Diameter (D): 0.437"
- Overall Chain Width (F): 2.62"
- Overall Connecting Link Width: 2.75"
- Tensile Strength: 43,000 LBS
- Weight Per Foot: 4.5 LBS
Not only do we supply the chain, but we also have a wide variety of 81X sprockets and a full line of attachments available for 81X chains. For more information or to get a formal quote on the 81XHH roller chain, please contact us, and we will be happy to assist you.
- Chain #: 81XHH
- Pitch (P): 2.609"
- Roller Width (W): 1.062"
- Roller Diameter (R): 0.905"
- Plate Height (H): 1.122"
- Plate Thickness (T): 0.312"
- Pin Diameter (D): 0.437"
- Overall Chain Width (F): 2.62"
- Overall Connecting Link Width: 2.75"
- Tensile Strength: 43,000 LBS
- Weight Per Foot: 4.5 LBS
