Specialty Chain > Engineering Class Chains > 81X Steel Bushed Roller Chains > Precision 81X Chain For Conveying

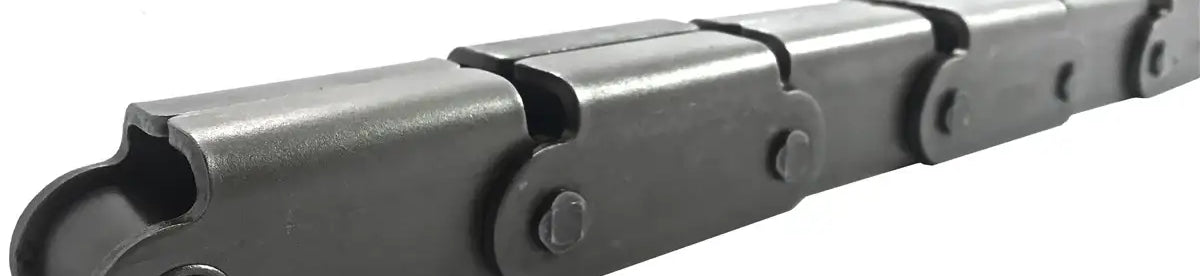

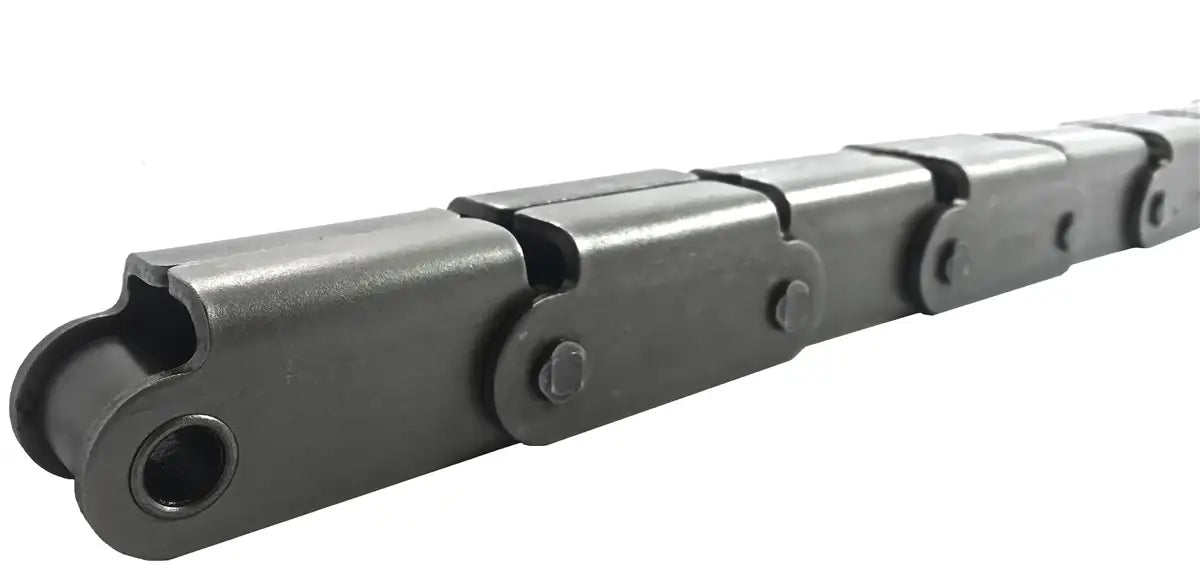

81X RT Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 81X-RT-CHAIN
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
81X RT Roller Chain Features
81X RT Roller Chain Specifications
81X RT Roller Chain is a roof-top style conveying chain designed to convey heavy loads from one point to another. Some people also know 81XRT chain as 81X F1 conveyor chain due to other brands nomenclature, our 81X RT chain will directly interchange with other chains. Something notable about our chain is that uses high-quality heat-treated shot peened steel components as well as a solid bushing solid roller (SBR) design for a superior performance and long-term durability.
Besides the chain, we also supply a full range of 81X sprockets. For more information or to get a quote please contact us and we will be happy to assist you.
81X RT Chain Dimensions
- Chain Size: 81X RT
- Pitch (P): 2.609"
- Roller Width (W): 1.063"
- Roller Diameter (R): 0.905"
- Pin Diameter (D): 0.437"
- Pin Length (L1): 0.945"
- Pin Length (L2): 1.118"
- Plate Height (H): 1.125"
- Plate Thickness (T): 0.154"
- Roof Width (M): 2.500"
- Roof Height (RH): 1.000"
- Tensile Strength: 30,000 LBS
- Weight Per Foot: 3.68 LBS
Besides the chain, we also supply a full range of 81X sprockets. For more information or to get a quote please contact us and we will be happy to assist you.
- Chain Size: 81X RT
- Pitch (P): 2.609"
- Roller Width (W): 1.063"
- Roller Diameter (R): 0.905"
- Pin Diameter (D): 0.437"
- Pin Length (L1): 0.945"
- Pin Length (L2): 1.118"
- Plate Height (H): 1.125"
- Plate Thickness (T): 0.154"
- Roof Width (M): 2.500"
- Roof Height (RH): 1.000"
- Tensile Strength: 30,000 LBS
- Weight Per Foot: 3.68 LBS
