Premium 80HKSR Roller Chain - 10ft Box
SKU: 80HKSR-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

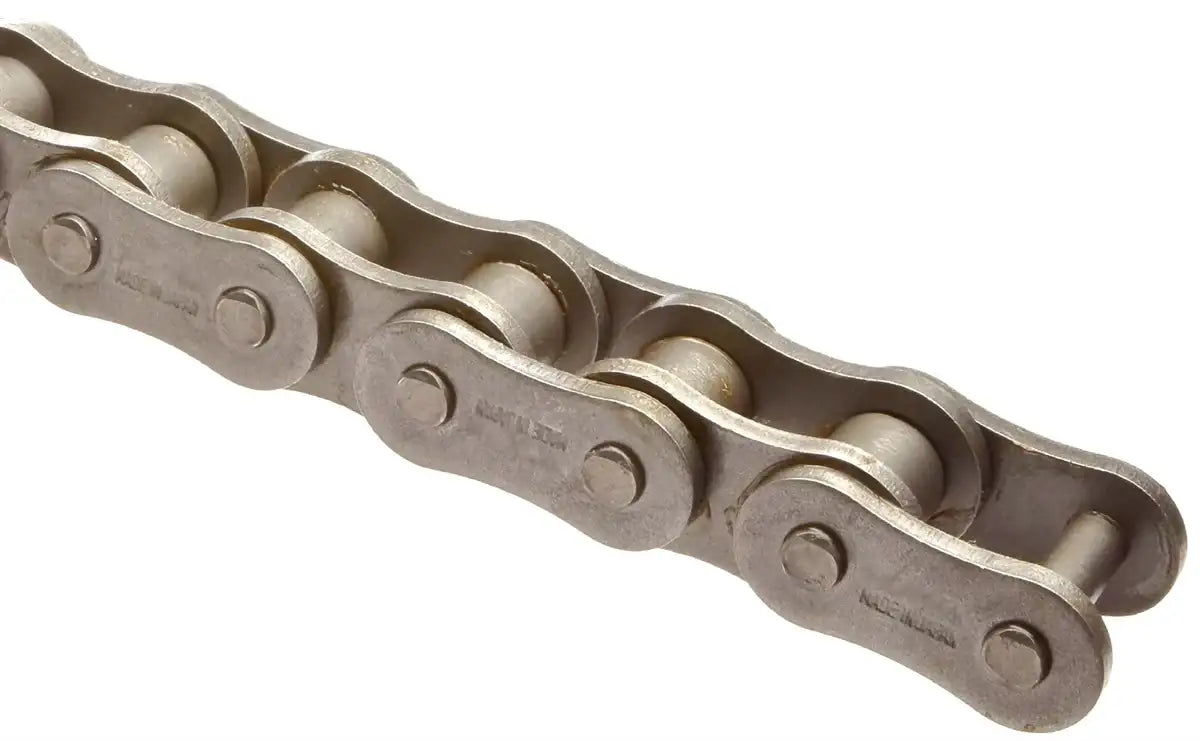

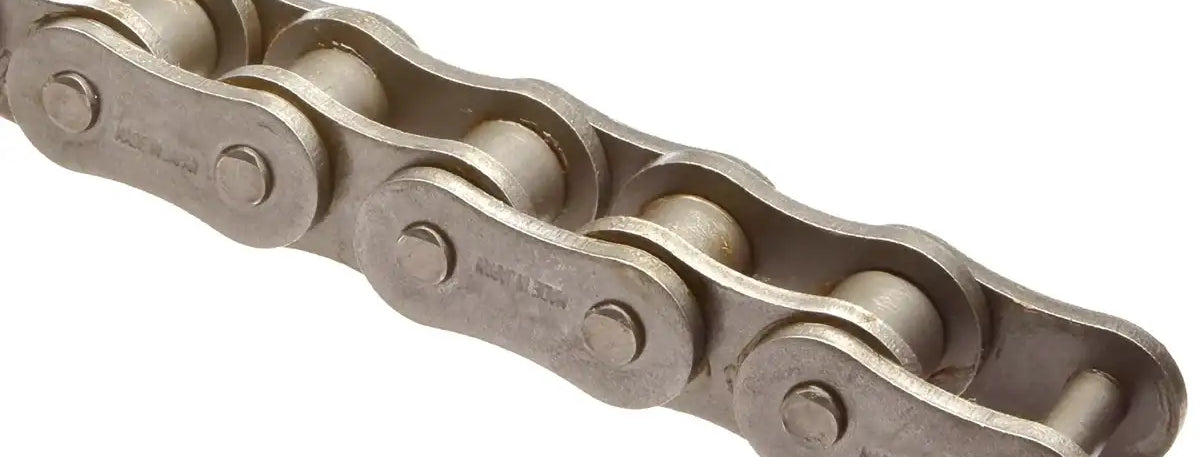

Premium 80HKSR Roller Chain - 10ft Box Description/Features
Premium 80HKSR Roller Chain - 10ft Box Specifications
#80HKSR roller chain is apart of the Super High Strength HKSR series premium heavy roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI heavy roller chain. HKSR roller chains feature enlarged and thickened plates, improved machined parts accuracy and assembly, solid bushings and solid rollers. These features further increase the working life, strength, and efficiency over the HK series chains throughout the entire low to high speed application spectrum. Additionally compared to standard roller chains, HKSR series chains are higher in maximum horsepower rating by around 30% in a medium to low speed application. #80HKSR chain also has a much better performance than other chains in applications where there are high shock loads, frequent starting and stopping, and in relatively high-speed applications such as; power shovels, trenchers, trucks, cranes, mixers, conveyors, elevators, stackers, and more. If you're needing a large quantity of #80HKSR roller chain or need any additional information please contact us and we will be happy to assist you!
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
Dimensions:
- Chain #: 80HKSR
- Pitch (P): 1.000"
- Roller Diameter (D): 0.625"
- Width Between Plates (W): 0.625"
- Link Plate Height (H): 0.949"
- Side Plate Thickness (T): 0.157"
- Pin Diameter (E): 0.313"
- Pin Length (L): 1.421"
- Average Tensile Strength: 22,000 LBS
- Maximum Recommended Working Load: 5,060 LBS
- Weight Per Foot: 2.09 LBS
Phone: (407) 347-3519
Email:
See What All We Offer "Here"!
- Chain #: 80HKSR
- Pitch (P): 1.000"
- Roller Diameter (D): 0.625"
- Width Between Plates (W): 0.625"
- Link Plate Height (H): 0.949"
- Side Plate Thickness (T): 0.157"
- Pin Diameter (E): 0.313"
- Pin Length (L): 1.421"
- Average Tensile Strength: 22,000 LBS
- Maximum Recommended Working Load: 5,060 LBS
- Weight Per Foot: 2.09 LBS
