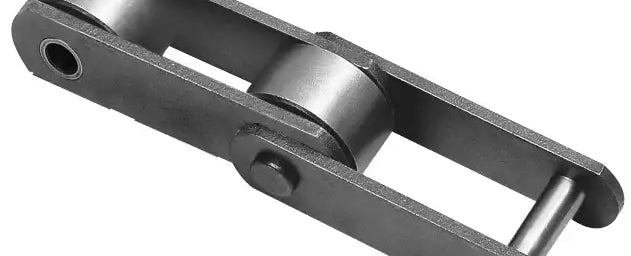

806R Chain

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > 806R Roller Chain

806R Chain

Note: Custom Cut to Length Chain Also Available
SKU: 806R-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714843312495" , "metafield_value":""}]
806R Chain Features
806R Chain Specifications
806R Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This 806R Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality 806R sprockets with very short lead-times. For more information or to get a quote on 806R roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
806R Chain
  • Chain #: 806R
  • Pitch: 8.000"
  • Pin End To CL (B): 2.63"
  • Pin Head To CL (C): 2.22"
  • Inside Width (E): 1.81"
  • Roller Diameter (D): 3.00"
  • Roller Width (L): 1.75"
  • Roller Style: T
  • Roller Material: Carbon Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Heat-Treated
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Carbon Heat-Treated
  • Bushing Material: Carbon Case-Hardened
  • Bearing Area: 2.81"
  • Ultimate Strength: 95,000 LBS
  • Maximum Working Load: 9,800 LBS
  • Weight Per Foot: 22.5 LBS

Roller Style: 806R Chain

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain #: 806R
  • Pitch: 8.000"
  • Pin End To CL (B): 2.63"
  • Pin Head To CL (C): 2.22"
  • Inside Width (E): 1.81"
  • Roller Diameter (D): 3.00"
  • Roller Width (L): 1.75"
  • Roller Style: T
  • Roller Material: Carbon Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Heat-Treated
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Carbon Heat-Treated
  • Bushing Material: Carbon Case-Hardened
  • Bearing Area: 2.81"
  • Ultimate Strength: 95,000 LBS
  • Maximum Working Load: 9,800 LBS
  • Weight Per Foot: 22.5 LBS
