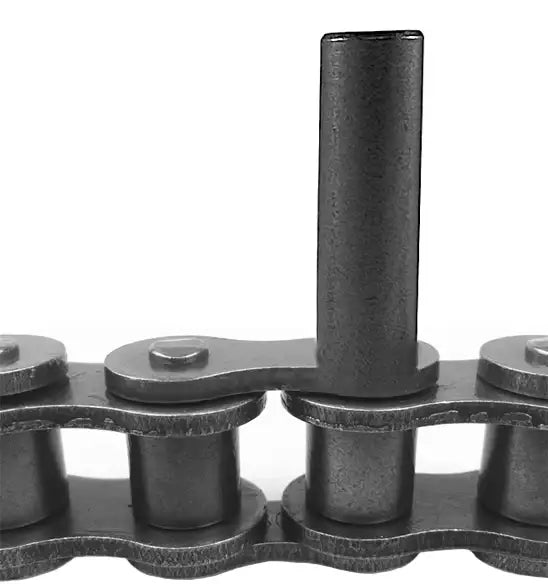

#80 Roller Chain With D-5 Every 3rd Pitch

#80 roller chain with a D5 pin every 3rd pitch is typically used for tomatoes, citrus, and other produce packaging applications. The D5 extended pins are used to support rotating rollers; the simple design is highly effective and economical. What sets our 80 chains with D5 attachments every 3rd pitch apart from others is our implementation of solid rollers, shot-peened and heat-treated precision components, and a specific factory pre-load that significantly reduces initial stretch. Typically these chains are supplied as 10ft boxes with a connecting link, but other lengths are available upon request. This chain dimensionally is manufactured to ANSI dimensional standards, meaning it directly interchanges with other brands. Finally, we also offer a #80 roller chain with D-5 attachments in stainless steel and attachments at different spacings (every pitch, 2nd pitch, 4th pitch, etc..). For additional information or to get a quote, contact our customer support team, and we will be happy to assist you!

80 Chain With D5 Every 3rd Dimensions

• Part #: 80-D5-EV3RD
• Pitch (P): 1.000"
• Roller Width (R): 0.625"
• Roller Diameter (D): 0.625"
• Overall Width (W): 1.319"
• Connecting Link Width Without Pin (X): 1.532"
• Plate Height (H): 0.950"
• Plate Thickness (T): 0.125"
• Pin Diameter (L): 0.312"
• D-5 Pin Projection (K): 1.625"
• D-5 Pin diameter (V): 0.500"
• Weight: 2.07 LBS/ FT
