7N Accumulator Chain - Type F

7N accumulator chain is a type F accumulator chain. 7N chains are designed for applications where the product must be conveyed, accumulated, accelerated, and separated gently. Our high-quality 7N-ACU accumulator chain provides clients with a performance, precision, and reliable chain product that is second to none. As a genuine tier-one accumulator conveyor chain, we utilize the best quality raw materials, precision-formed components, and proprietary processes to improve wear life, durability, and performance. In addition, we supply 7N chains with options like stainless or polymer rollers, side-flexing, and maintenance-free or snap-in "clip" protectors for preventing materials from falling through the chain. Furthermore, our 7N accumulator roller chain interchanges with other brands, meaning that no guides or sprockets need to be changed when replacing an existing chain. However, we also supply sprockets and accumulator chain guides. For additional information or to get a quote on the 7N accumulator chain, contact our customer support team, and we will be happy to assist you!

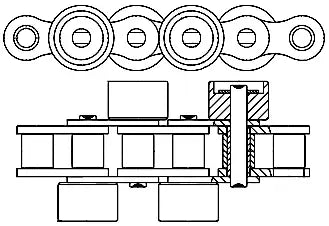

7N Accumulator Chain Dimensions

• Chain Part #: 7N-ACU
• Pitch (P): 12.70mm
• Type: F
• Dimension (d1): 8.51mm
• Dimension (D): 15.80mm
• Dimension (b1): 7.75mm
• Dimension (b4): 16.60mm
• Dimension (b5): 33.00mm

Accumulator Chain Options

Chain Clips:

These clips are designed to improve the accumulator chain's safety while preventing articles from falling through the chain.
Self-Lubricating/ Maintenance Free:

A self-lubricating accumulator chain will typically utilize a unique pin, bushing, or both that are impregnated with oil. These unique components release minute amounts of oil as the chain is in operation and are ideal in applications where lubrication is difficult or when conveying sensitive materials that can't come into contact with chain oil.
Guide Plates:

These guide plates are available in various spacing options and design options in both carbon and stainless steel material options.
Material Options:

We supply accumulator chains in stainless steel or carbon steel materials; either option is available with plastic rollers.
Accumulator Chain Guide:

Chain guides are utilized for a reduction in chain wear and system friction.
Accumulator Chain Sprockets:

We supply an array of accumulator chain sprockets with different tooth counts, hub configurations, and bore ranges.
