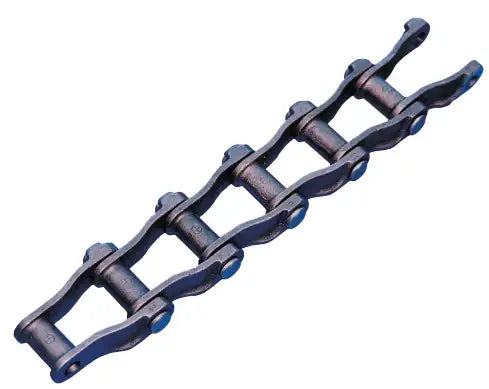

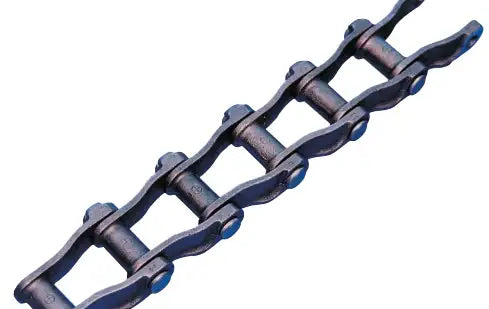

Premium 788 Chain
Premium 788 Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: 788-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
788 Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight, and features an average ultimate strength of 22,750 LBS and a maximum recommended working load of 2,740 LBS. It is apart of the heavy duty 700-Class series pintle chain and is a common in-stock item. USA Roller Chain has a premium 788 chain in either riveted or cottered construction. Something special about this chain is the T-Head pins that eliminate pin rotation while at the same time prevent the entrance of dirt and or grit. As a drive chain, 788 chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications.
Besides the premium 788 Chain we also offer a full line of sprockets, flights, wear materials, drive systems, and more. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on 788 chain or for more information please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Besides the premium 788 Chain we also offer a full line of sprockets, flights, wear materials, drive systems, and more. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on 788 chain or for more information please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: 788
- Pitch: 2.609"
- Links Per 10ft: 46
- Weight: 4.6 LBS/ FT
- Average Ultimate Strength: 22,750 LBS
- Maximum Recommended Working Load: 2,740 LBS
- Maximum Allowable Sprocket Face (A): 0.94"
- Overall Width Cottered (C2): 3.31"
- Overall Width Riveted (C1): 3.19"
- Pin diameter (E): 0.560"
- Sidebar Height (H): 1.19"
- Barrel Diameter (D): 0.88"
- Head of Pin To Center Line (J): 1.56"
- End of Pin to Center Line Cottered (K): 1.75"
- End of Pin to Center Line Riveted (L): 1.62"
- Bearing Length (X): 1.62"
Email:
Feature
- Premium 788 Pintle Chain
- Typically In-Stock
- Wide Range of Attachments and Sprockets Available
- Commonly Found in Wastewater Applications
- Chain Size: 788
- Pitch: 2.609"
- Links Per 10ft: 46
- Weight: 4.6 LBS/ FT
- Average Ultimate Strength: 22,750 LBS
- Maximum Recommended Working Load: 2,740 LBS
- Maximum Allowable Sprocket Face (A): 0.94"
- Overall Width Cottered (C2): 3.31"
- Overall Width Riveted (C1): 3.19"
- Pin diameter (E): 0.560"
- Sidebar Height (H): 1.19"
- Barrel Diameter (D): 0.88"
- Head of Pin To Center Line (J): 1.56"
- End of Pin to Center Line Cottered (K): 1.75"
- End of Pin to Center Line Riveted (L): 1.62"
- Bearing Length (X): 1.62"
