By Application > Sugar Mill Chains
#80-RP1 Sugar Cane Harvester Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 7462-RC-P-ASA80-RP1
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#80-RP1 Sugar Cane Harvester Chain Features
#80-RP1 Sugar Cane Harvester Chain Specifications
#80-RP1 sugar cane harvester chain is manufactured using premium quality steel alloys to precision tolerances. Each component is heat-treated and shot-peened for optimal wear-life and overall performance. This chain is categorized as a sticker roller chain due to the shart point located on every side-plate. We also supply sprockets for this chain and custom lengths upon request. For additional information or to get a quote on #80-RP1 sugar cane harvester chain contact our customer support team and we will be happy to assist you!

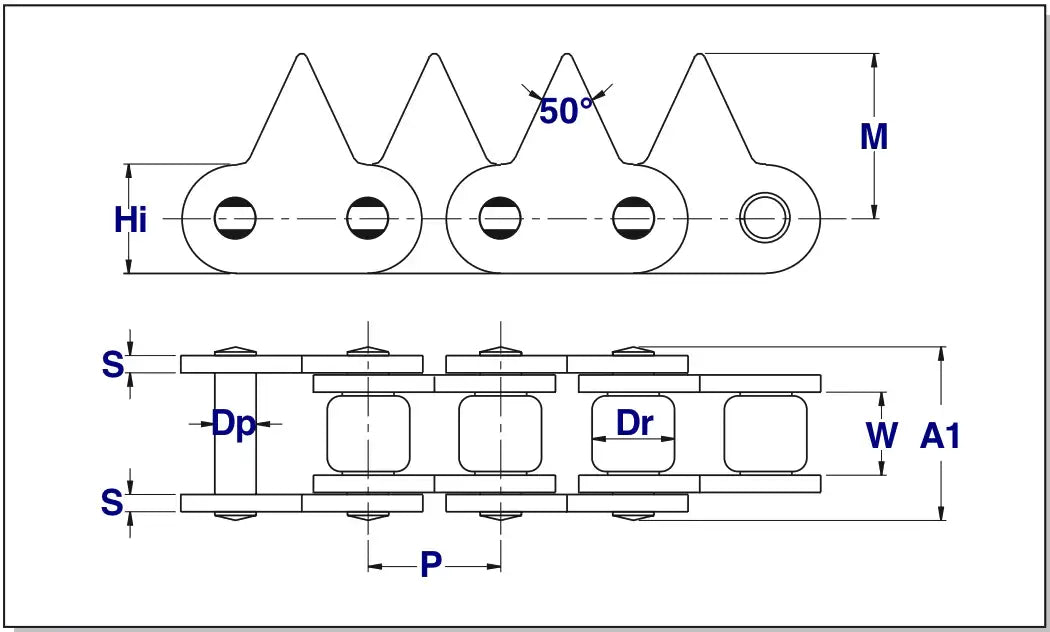

80-RP1 Chain Dimensions
- Size: ASA80-RP1
- Pitch (P): 25.40mm
- Roller Diameter (Dr): 15.88mm
- Inside Width (W): 15.75mm
- Plate Height (Hi): 24.13mm
- Plate Thickness (s): 3.15mm
- Dimension (Dp): 7.94mm
- Dimension (A1): 33.50mm
- Average Ultimate Strength: 64.7 kN
- Size: ASA80-RP1
- Pitch (P): 25.40mm
- Roller Diameter (Dr): 15.88mm
- Inside Width (W): 15.75mm
- Plate Height (Hi): 24.13mm
- Plate Thickness (s): 3.15mm
- Dimension (Dp): 7.94mm
- Dimension (A1): 33.50mm
- Average Ultimate Strength: 64.7 kN
