By Application > Sugar Mill Chains
CA733 Sugar Cane Harvester Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 7462-RC-P-50-11
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CA733 Sugar Cane Harvester Chain Features
CA733 Sugar Cane Harvester Chain Specifications
CA733 sugar cane harvester chain is manufactured using premium quality steel alloys to precision tolerances. Each component is heat-treated and shot-peened for optimal wear-life and overall performance. We also supply sprockets for this chain and custom lengths upon request. For additional information or to get a quote on CA733 sugar cane harvester chain contact our customer support team and we will be happy to assist you!

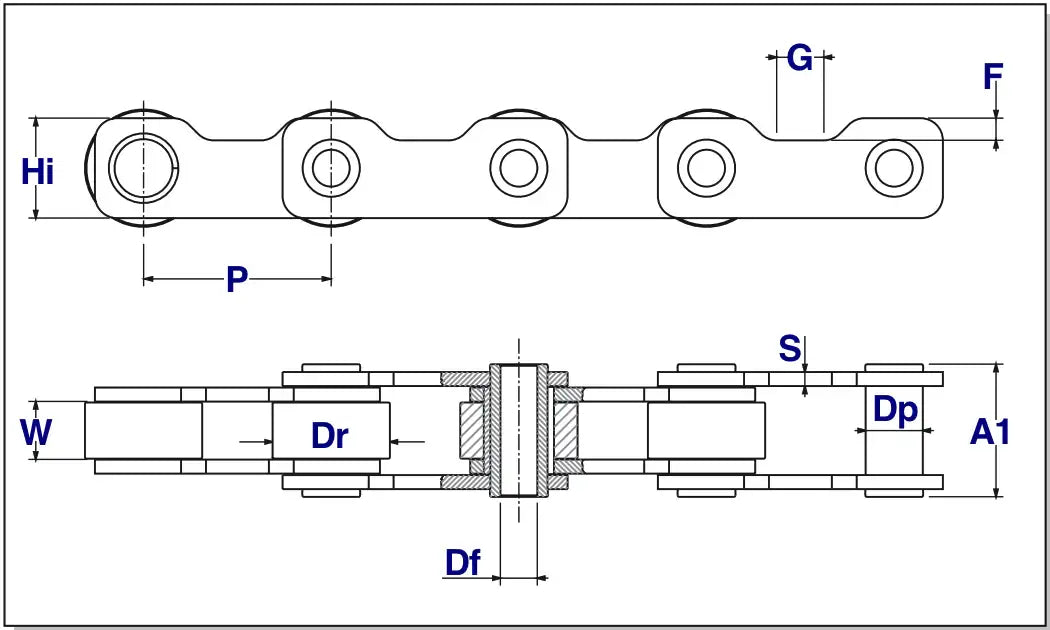

CA733 Chain Dimensions
- Chain Size: CA733
- Pitch (P): 50.80mm
- Roller Diameter (Dr): 31.75mm
- Inside Width (W): 15.70mm
- Height (Hi): 27.2mm
- Plate Thickness (s): 3.7/3.25mm
- Dimension (Dp): 14.75mm
- Dimension (Df): 10.30mm
- Dimension (A1): 41.90mm
- Working Surface: 352mm^2
- Average Ultimate Strength: 54.9 kN
- Weight: 2.99 kG/ m
- Chain Size: CA733
- Pitch (P): 50.80mm
- Roller Diameter (Dr): 31.75mm
- Inside Width (W): 15.70mm
- Height (Hi): 27.2mm
- Plate Thickness (s): 3.7/3.25mm
- Dimension (Dp): 14.75mm
- Dimension (Df): 10.30mm
- Dimension (A1): 41.90mm
- Working Surface: 352mm^2
- Average Ultimate Strength: 54.9 kN
- Weight: 2.99 kG/ m
