Power Transmission > Screw Conveyors & Parts > Screw Conveyor Troughs
Flared 6" Screw Conveyor Trough X 10ft Long | 6FT14-14
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-6FT14-14
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Flared 6" Screw Conveyor Trough X 10ft Long | 6FT14-14 Features
Flared 6" Screw Conveyor Trough X 10ft Long | 6FT14-14 Specifications

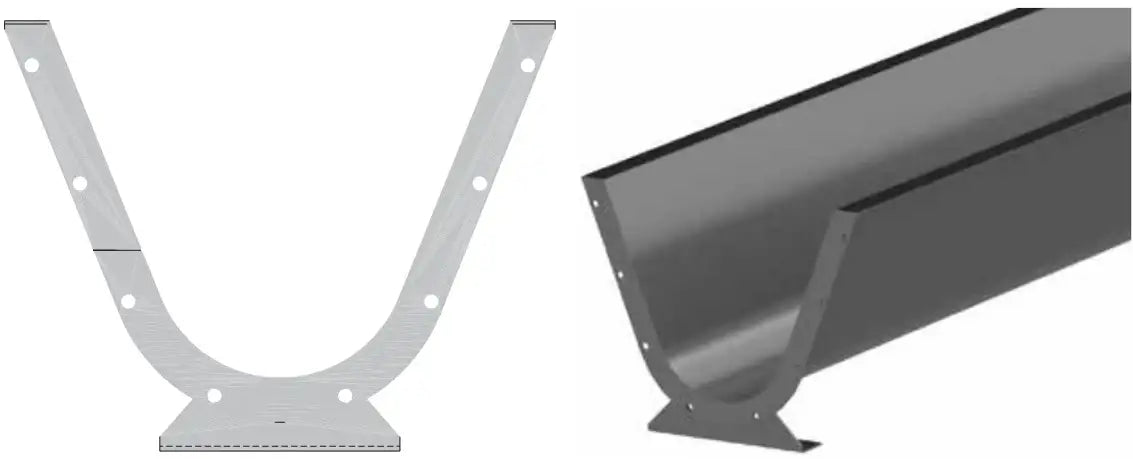

6FT14-14 flared 6" screw conveyor trough X 10ft long is designed to allow the standard 1/2" clearance between the screw and the trough bottom. The flared design improves the feeding and conveying action, particularly on materials that are not entirely free-flowing or material in large slabs or pieces. The top edges are flanged to provide cover support. To ensure a tight fit and perfect alignment when installed, NU-Weld end flanges are continuously jig-welded on each end. Standardly manufactured from steel, but Where conditions require special construction, flared Troughs may be furnished in stainless steel, Monel, or other alloys. Covers are usually bolted on or furnished with screw or spring clamps and may be flat for interior or hip roof for exterior installations. For additional information or to get a quote on flared 6" screw conveyor trough X 10ft long contact our customer support team, and we will be happy to assist you!
Flared 6" Conveyor Trough X 10ft Long Dimensions
- Part #: 6FT14-14
- Diameter of Conveyor: 6"
- Trough Thickness: 14
- Dimension (A): 16-5/8"
- Dimension (B): 7"
- Dimension (C): 5-5/8"
- Dimension (D): 3-1/2"
- Weight Per Ft: 8 LBS
- Part #: 6FT14-14
- Diameter of Conveyor: 6"
- Trough Thickness: 14
- Dimension (A): 16-5/8"
- Dimension (B): 7"
- Dimension (C): 5-5/8"
- Dimension (D): 3-1/2"
- Weight Per Ft: 8 LBS
