24" Screw Conveyor Rack and Pinion Gate - 12 Gauge | Flat Slide
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-350-2739
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
24" Screw Conveyor Rack and Pinion Gate - 12 Gauge | Flat Slide Features
24" Screw Conveyor Rack and Pinion Gate - 12 Gauge | Flat Slide Specifications

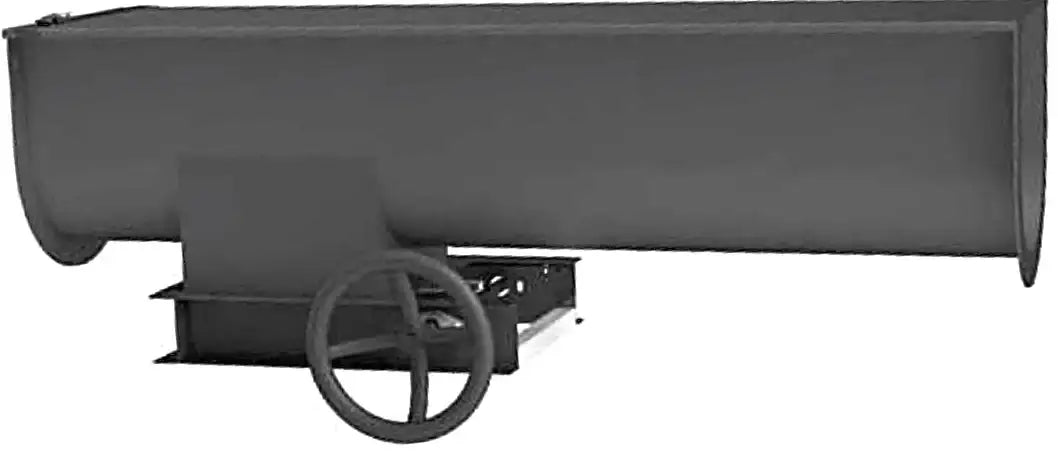

This flat slide 24" screw conveyor rack and pinion gate is made from high-quality 12 gauge thickness steel. Rack and pinion slide discharge gates are designed with cut tooth racks that are welded to the curved slide plate, this rack engages with a cut tooth pinion that is mounted onto a shaft and is operated by a handwheel. The flat slides allow for operation in any one of four positions if the clearance is available. Flat slides can also be operated with the use of chain wheels or power-operated with electric motors, air, or hydraulic cylinders. For More information or to get a quote on flat slide 24" screw conveyor rack and pinion gates contact our customer service team and we will be happy to assist you!
Flat Slide 24" Screw Conveyor Rack and Pinion Gate Dimensions
- Diameter of Conveyor: 24"
- Part #: 350-2739
- Thickness/ Gauge of Steel: 12
- Weight (LBS): 176
- Dimension (A): 25"
- Dimension (B): 30-1/4"
- Dimension (C): 5"
- Dimension (D): 29-1/2"
- Dimension (E): 12"
- Dimension (F): 16-1/2"
- Slide Thickness/ Gauge (G): 3/16
- Dimension (H): 20-7/16"
- Dimension (J): 12"
- Dimension (K): 12"
- Dimension (L): 2"
- Dimension (M): 42-1/2"
- Diameter of Conveyor: 24"
- Part #: 350-2739
- Thickness/ Gauge of Steel: 12
- Weight (LBS): 176
- Dimension (A): 25"
- Dimension (B): 30-1/4"
- Dimension (C): 5"
- Dimension (D): 29-1/2"
- Dimension (E): 12"
- Dimension (F): 16-1/2"
- Slide Thickness/ Gauge (G): 3/16
- Dimension (H): 20-7/16"
- Dimension (J): 12"
- Dimension (K): 12"
- Dimension (L): 2"
- Dimension (M): 42-1/2"
