16" Screw Conveyor Rack and Pinion Gate - 10 Gauge | Curved Slide
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-350-0915
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
16" Screw Conveyor Rack and Pinion Gate - 10 Gauge | Curved Slide Features
16" Screw Conveyor Rack and Pinion Gate - 10 Gauge | Curved Slide Specifications

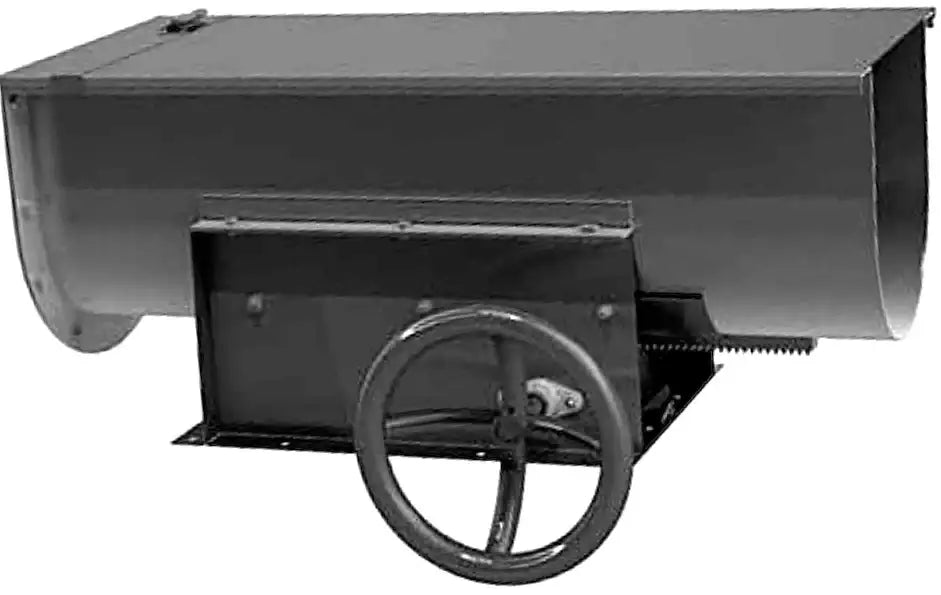

This curved slide 16" screw conveyor rack and pinion gate is made from high-quality 10 gauge thickness steel. Rack and pinion slide discharge gates are designed with cut tooth racks that are welded to the curved slide plate, this rack engages with a cut tooth pinion that is mounted onto a shaft and is operated by a handwheel. Curved slides conform with the contour of the trough which eliminates all pockets that might trap the material in a spout above a flat slide. Curved slides can also be operated with the use of chain wheels or power-operated with electric motors, air, or hydraulic cylinders. For More information or to get a quote on curved slide 16" screw conveyor rack and pinion gates contact our customer service team and we will be happy to assist you!
Curved Slide 16" Screw Conveyor Rack and Pinion Gate Dimensions
- Diameter of Conveyor: 16"
- Part #: 350-0915
- Thickness/ Gauge of Steel: 10
- Weight (LBS): 115
- Dimension (A): 17-1/4"
- Dimension (B): 21-1/4"
- Dimension (C): 11-13/16"
- Dimension (D): 20-5/8"
- Dimension (E): 10"
- Dimension (F): 12-5/8"
- Slide Thickness/ Gauge (G): 10
- Dimension (H): 16-7/16"
- Dimension (J): 12"
- Dimension (K): 12"
- Dimension (L): 2-5/8"
- Dimension (M): 30-5/8"
- Diameter of Conveyor: 16"
- Part #: 350-0915
- Thickness/ Gauge of Steel: 10
- Weight (LBS): 115
- Dimension (A): 17-1/4"
- Dimension (B): 21-1/4"
- Dimension (C): 11-13/16"
- Dimension (D): 20-5/8"
- Dimension (E): 10"
- Dimension (F): 12-5/8"
- Slide Thickness/ Gauge (G): 10
- Dimension (H): 16-7/16"
- Dimension (J): 12"
- Dimension (K): 12"
- Dimension (L): 2-5/8"
- Dimension (M): 30-5/8"
