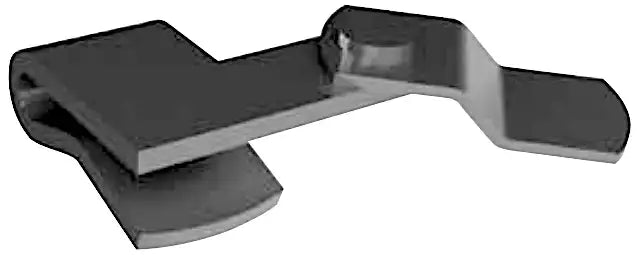

2SC Screw Conveyor Spring Cover Clamp - 325-1105
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-325-1105
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
2SC Screw Conveyor Spring Cover Clamp - 325-1105 Features
2SC Screw Conveyor Spring Cover Clamp - 325-1105 Specifications
The 2SC screw conveyor spring cover clamp is commonly used to fasten flat or semi-flanged covers to the conveyor trough. They can be used in dust-tight applications because they have the capability to be placed over a gasket cover. These clamps are typically placed on 2ft 6-inch centers but if gasketed they need to be placed at 15-inch or closer centers depending on the application. For additional information or to get a quote on screw conveyor spring cover clamps contact our customer support team and we will be happy to assist you!
The component above outlined in red is not included with this clamp if to include a bracket for welding to cover please advise the customer service rep.
2SC Screw Conveyor Spring Cover Clamp Dimensions
- Size Code: 2SC
- Part #: 325-1105
- Dimension (A): 1-1/8"
- Dimension (B): 1-15/16"
- Dimension (C): 3-1/4"
- Dimension (D): 1-1/8"
- Dimension (E): 1-1/2"
- Dimension (F): 13/32"
- Dimension (G): 1/4"
- Dimension (H): 3/16"
- Weight: 0.51 LBS
The component above outlined in red is not included with this clamp if to include a bracket for welding to cover please advise the customer service rep.
- Size Code: 2SC
- Part #: 325-1105
- Dimension (A): 1-1/8"
- Dimension (B): 1-15/16"
- Dimension (C): 3-1/4"
- Dimension (D): 1-1/8"
- Dimension (E): 1-1/2"
- Dimension (F): 13/32"
- Dimension (G): 1/4"
- Dimension (H): 3/16"
- Weight: 0.51 LBS
