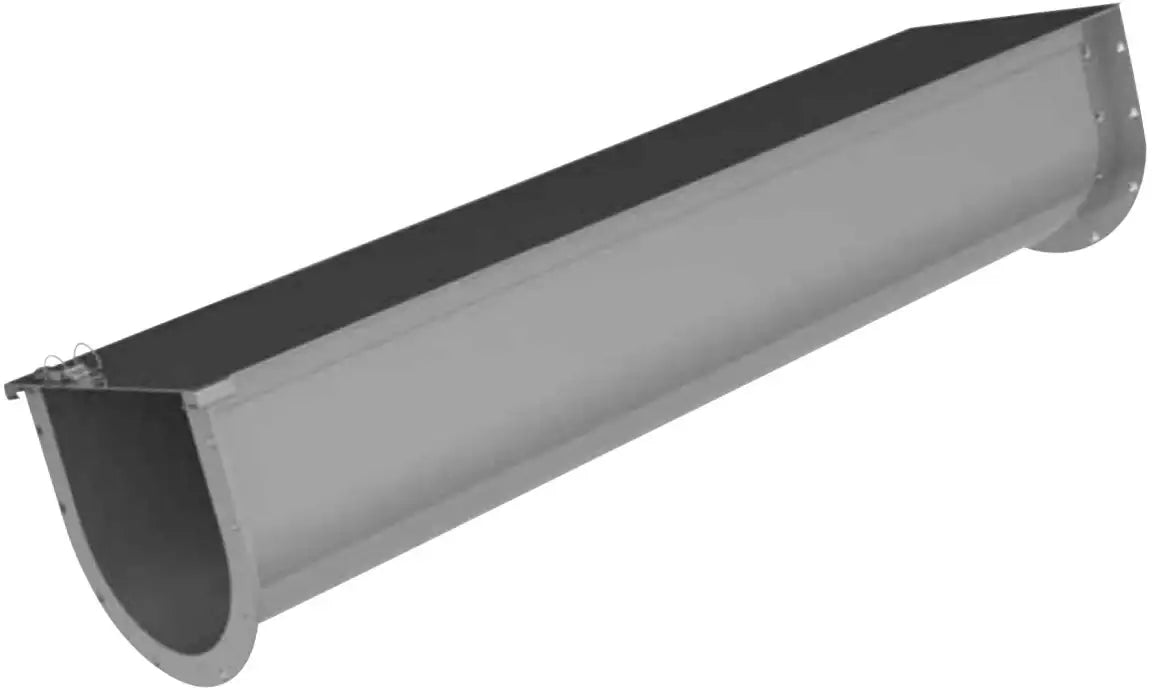

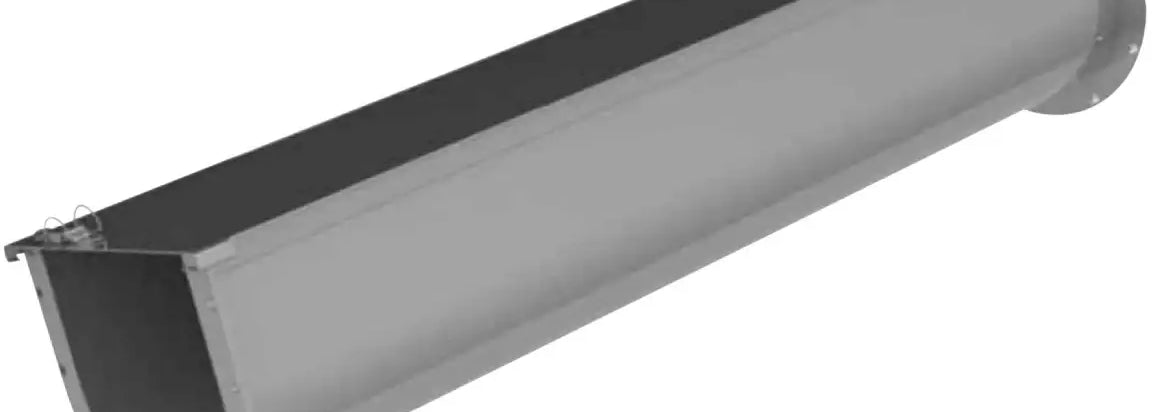

Tite-Seal Cover For 16" Conveyor X 6ft | 14 Ga. Steel

Tite-Seal cover for 16" conveyor X 5ft long is made from 14-gauge steel and is designed for use with angle troughs, Tite-Seal covers provide a certain degree of dut protection. The flat cover is held in place securely by a continuous formed steel U edging along both sides of the trough. This U edging is fitted with sponge rubber and seals the cover of the trough. The Tite-Seal quick-release cover clamps securely hold the cover in place and prevent accidental access to the screw conveyor, while providing easy access to the trough interior when needed. A gasket attached to the underside of the cover clamp seals the joint between lengths of the conveyor. For additional information or to get a quote on Tite-Seal cover for 16" conveyor X 6ft long contact our customer support team and we will be happy to assist you.

Tite-Seal cover for 16" conveyor X 6ft long Dimensions

• Part #:312-1274
• Conveyor Size: 16"
• Gauge of Steel: 14
• Dimension (A): 21-1/4"
• Dimension (B): 25"
• Weight Per Foot: 5.8 LBS
