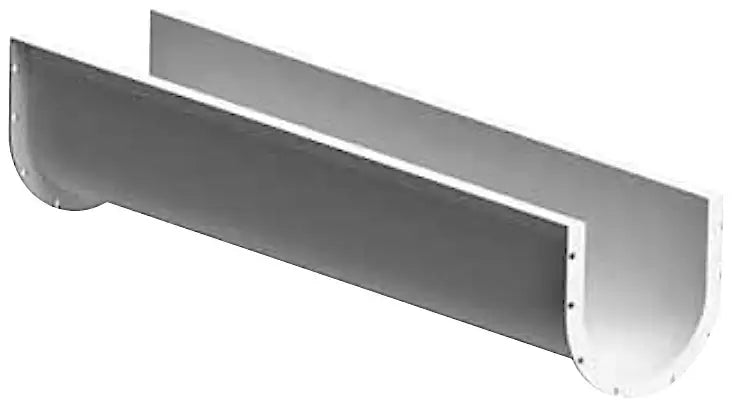

Angle 10" Screw Conveyor Trough X 10ft Long | 305-2206

305-2206 angle 10" screw conveyor trough X 10ft long is fitted with structural steel angles along the trough's top edge to provide excellent strength and rigidity. To ensure a tight fit and perfect alignment when installed, NU-Weld end flanges are continuously jig-welded on each end. Angel troughs are typically formed of hot-rolled steel, but we can also furnish them out of stainless steel or other material types that the application might require, including a hot-dipped galvanized steel. Special modifications such as a perforated bottom, a drop bottom for easy access and cleaning, jacketing for heating and cooling, or others specific to the application at hand are also available. These troughs are normally fitted with a tite-seal cover, but other cover types such as dome, flanged, or hip-roof are also available. We also supply trough saddles as well as a range of other screw conveyor parts. If supporting feet are required, they will be mounted at the flange joints. For additional information or to get a quote on angle 10" screw conveyor trough X 10ft long, contact our customer support team, and we will be happy to assist you!

Angle 10" Conveyor Trough X 10ft Long

• Part #: 305-2206
• Diameter of Conveyor: 10"
• Trough Thickness: 14"
• Dimension (A): 11"
• Size of Angles (B): 1-1/2" x 1-1/2" x 3/16"
• Dimension (C): 6-3/8"
• Weight Per Ft: 12LBS
