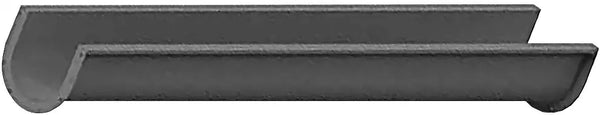

Double Flanged 10" Screw Conveyor Trough X 10ft Long
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-301-1871
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Double Flanged 10" Screw Conveyor Trough X 10ft Long Features
Double Flanged 10" Screw Conveyor Trough X 10ft Long Specifications
The double-flanged 10" screw conveyor trough X 10ft long is uniquely designed in a way that the trough exemplifies considerable strength and structural rigidity without the addition of weight to the trough. The double-flanged design also provides an excellent dust-tight seal when accompanied by the Barron flanged cover. This 10" double-flanged trough can also be manufactured from stainless-steel or other materials that may be required by the application at hand. To ensure a tight fit and perfect alignment when installed, NU-Weld end flanges are continuously jig-welded on each end. It is important to note that if supporting feet are needed, they will be placed at the trough's flange joints. We also supply trough saddles, covers, mounting hardware, and any other screw conveyor component needed for your system. For additional information or to get a quote on a double flanged 10" screw conveyor trough X 10ft long, contact our customer support team, and we will be happy to assist you.
Double-Flanged 10" Conveyor Trough X 10ft Dimensions
- Part #: 301-1871
- Diameter of Conveyor: 10"
- Trough Thickness: 14"
- Dimension (A): 11"
- Dimension (B): 1-13/16"
- Dimension (C): 14-5/8"
- Dimension (D): 6-3/8"
- Weight Per Ft: 9 LBS
- Part #: 301-1871
- Diameter of Conveyor: 10"
- Trough Thickness: 14"
- Dimension (A): 11"
- Dimension (B): 1-13/16"
- Dimension (C): 14-5/8"
- Dimension (D): 6-3/8"
- Weight Per Ft: 9 LBS
