1-1/2" Bronze Washer End Thrust - Style BW-2
SKU: 7222-275-0636
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
1-1/2" Bronze Washer End Thrust - Style BW-2 Description/Features
1-1/2" Bronze Washer End Thrust - Style BW-2 Specifications
Outside style 1-1/2" bronze washer end thrust is mounted at the discharge end of the conveyor. This assembly is capable of handling light to tension loads and is relatively inexpensive for the function it does. The transmission bronze washer is held in place between the face trough end bearing hub and a machined steel washer by a Tru-Arc thrust ring. For additional information or to get a quote on outside style 1-1/2" bronze washer end thrust assemblies contact our customer support team and we will be happy to assist you!

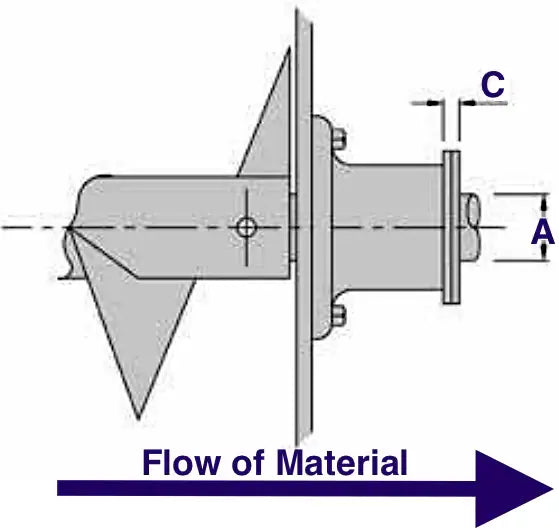

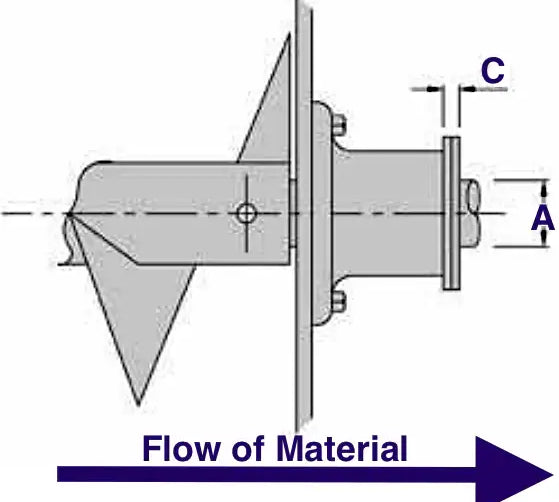

Outside Style 1-1/2" Bronze Washer End Thrust Dimensions
- Part #: 275-0636
- Shaft Size (A): 1-1/2"
- Weight Per Set: 3/4
- Dimension (B): 0.75"
- Dimension (C): 0.560"
- Washer Thickness: 0.25"
- Part #: 275-0636
- Shaft Size (A): 1-1/2"
- Weight Per Set: 3/4
- Dimension (B): 0.75"
- Dimension (C): 0.560"
- Washer Thickness: 0.25"
