2-7/16" Bronze Washer End Thrust - Style BW-1
SKU: 7222-275-0354
Only 0 left in stockItem is out of stock
Item is unavailable
2-7/16" Bronze Washer End Thrust - Style BW-1 Features
2-7/16" Bronze Washer End Thrust - Style BW-1 Specifications
Inside style 2-7/16" bronze washer end thrust is mounted inside the conveyor trough at the inlet end. This assembly is capable of handling light to moderate compression thrust loads and is relatively inexpensive for the function it does. It consists of a transmission bronze washer flanked on each side by a machined steel washer. For additional information or to get a quote on Inside style 2-7/16" bronze washer end thrust assemblies contact our customer support team and we will be happy to assist you!

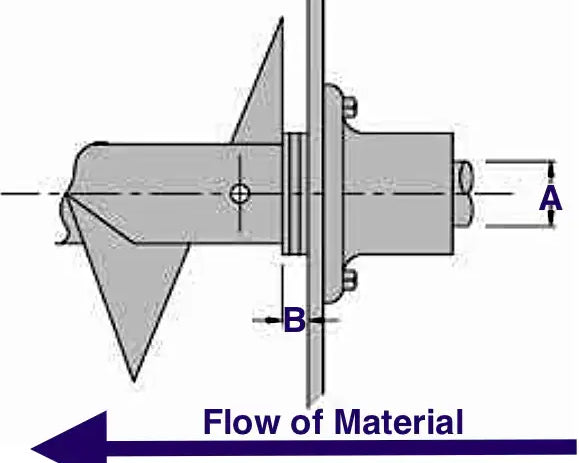

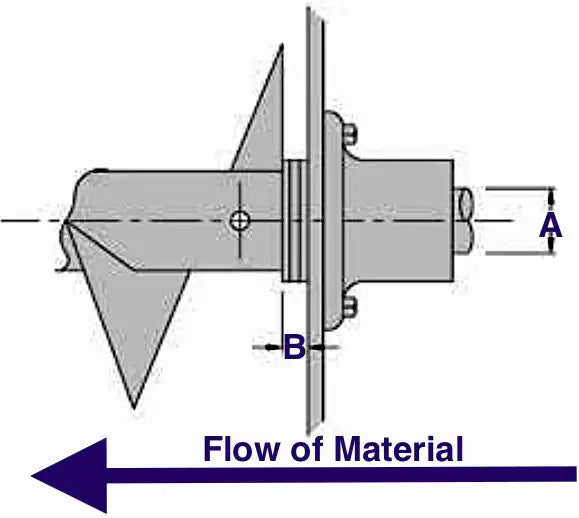

Inside Style 2-7/16" Bronze Washer End Thrust Dimensions
- Part #: 275-0354
- Shaft Size (A): 2-7/16"
- Weight Per Set: 2-1/4
- Dimension (B): 0.75"
- Dimension (C): 0.591"
- Washer Thickness: 0.25"
- Part #: 275-0354
- Shaft Size (A): 2-7/16"
- Weight Per Set: 2-1/4
- Dimension (B): 0.75"
- Dimension (C): 0.591"
- Washer Thickness: 0.25"
