260-1656 Bolt On Shelf Trough End For 3-15/16" Shaft Size

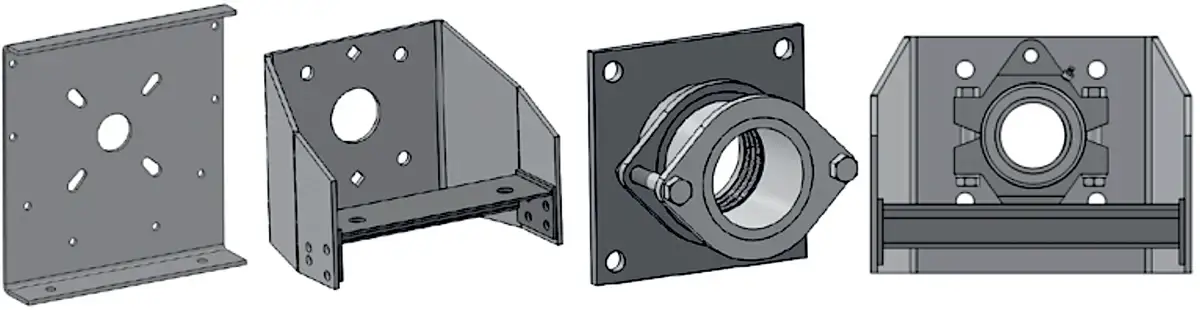

260-1656 Bolt-On shelf trough end for 3-15/16" shaft size is designed in a way that allows for the outboard mounting of the bearing, making maintenance exponentially easier. The shelf style trough end not only offers a solid mount for the bearing, but it provides stability for drives including roller chain, v-belt, direct connect, or reducer. The drive shaft between the bearing and seal is exposed, so the bearing will also run cooler, which increases its working life. The bolt-on shelf and the optional bolt-on pump type seal are adaptable to trough ends already in use. For additional information or to get a quote on 260-1656 Bolt-On shelf trough end for 3-15/16" shaft size, contact our customer support team, and we will be happy to assist you!

Bolt-On Shelf Trough End For 3-15/16" Shaft Dimensions

• Part#: 260-1656
• Shaft Size: 3-15/16"
• Dimension (A): 9-1/2"
• Dimension (B): 3/8"
• Dimension (C): 5-1/2"
• Dimension (D): 7-1/2"
• Dimension (E): 13"
• Dimension (F): 11-7/8"
• Weight: 45 LBS
