260-1649 Bolt On Shelf Trough End For 3-7/16" Shaft Size
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-260-1649
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
260-1649 Bolt On Shelf Trough End For 3-7/16" Shaft Size Features
260-1649 Bolt On Shelf Trough End For 3-7/16" Shaft Size Specifications

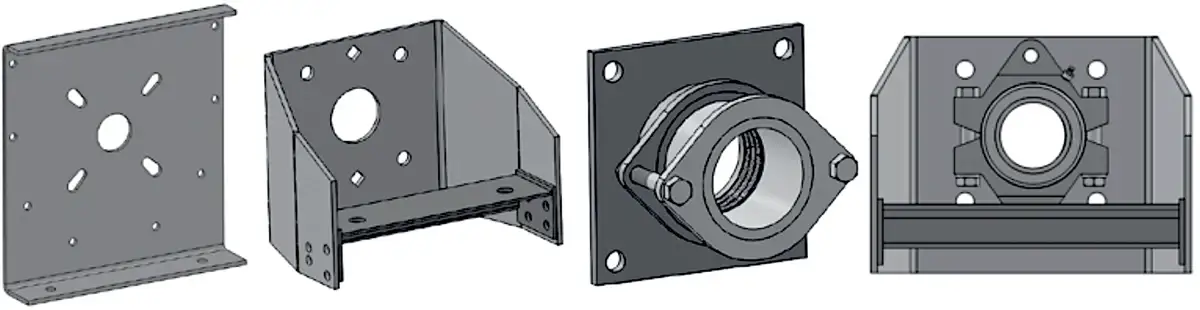

260-1649 Bolt-On shelf trough end for 3-7/16" shaft size is designed in a way that allows for the outboard mounting of the bearing, making maintenance exponentially easier. The shelf style trough end not only offers a solid mount for the bearing, but it provides stability for drives including roller chain, v-belt, direct connect, or reducer. The drive shaft between the bearing and seal is exposed, so the bearing will also run cooler, which increases its working life. The bolt-on shelf and the optional bolt-on pump type seal are adaptable to trough ends already in use. For additional information or to get a quote on 260-1649 Bolt-On shelf trough end for 3-7/16" shaft size, contact our customer support team, and we will be happy to assist you!
Bolt-On Shelf Trough End For 3-7/16" Shaft Dimensions
- Part#: 260-1649
- Shaft Size: 3-7/16"
- Dimension (A): 8-3/4"
- Dimension (B): 1/4"
- Dimension (C): 5-1/2"
- Dimension (D): 6-3/4"
- Dimension (E): 12-1/4"
- Dimension (F): 10-3/4"
- Weight: 26 LBS
- Part#: 260-1649
- Shaft Size: 3-7/16"
- Dimension (A): 8-3/4"
- Dimension (B): 1/4"
- Dimension (C): 5-1/2"
- Dimension (D): 6-3/4"
- Dimension (E): 12-1/4"
- Dimension (F): 10-3/4"
- Weight: 26 LBS
