260-1631 Bolt On Shelf Trough End For 3" Shaft Size
SKU: 7222-260-1631
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
260-1631 Bolt On Shelf Trough End For 3" Shaft Size Description/Features
260-1631 Bolt On Shelf Trough End For 3" Shaft Size Specifications

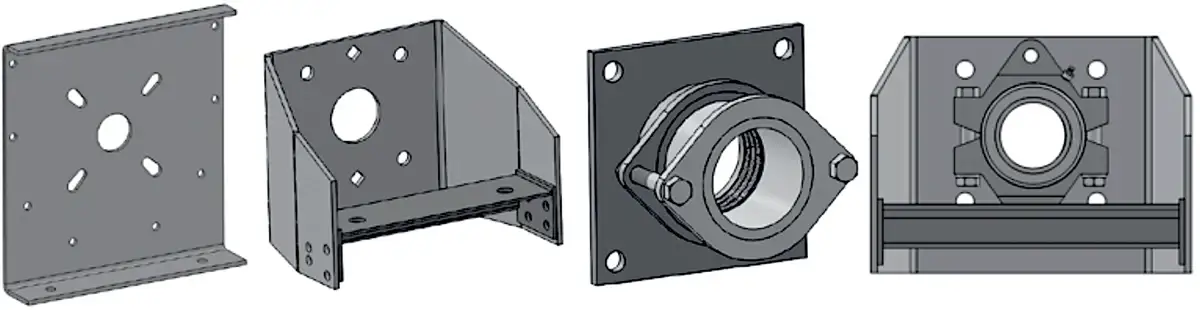

260-1631 Bolt-On shelf trough end for 3" shaft size is designed in a way that allows for the outboard mounting of the bearing, making maintenance exponentially easier. The shelf style trough end not only offers a solid mount for the bearing, but it provides stability for drives including roller chain, v-belt, direct connect, or reducer. The drive shaft between the bearing and seal is exposed, so the bearing will also run cooler, which increases its working life. The bolt-on shelf and the optional bolt-on pump type seal are adaptable to trough ends already in use. For additional information or to get a quote on 260-1631 Bolt-On shelf trough end for 3" shaft size, contact our customer support team, and we will be happy to assist you!
Bolt-On Shelf Trough End For 3" Shaft Dimensions
- Part#: 260-1631
- Shaft Size: 3"
- Dimension (A): 8-1/2"
- Dimension (B): 1/4"
- Dimension (C): 4-1/2"
- Dimension (D): 6-1/4"
- Dimension (E): 10-3/4"
- Dimension (F): 10-1/4"
- Weight: 21 LBS
- Part#: 260-1631
- Shaft Size: 3"
- Dimension (A): 8-1/2"
- Dimension (B): 1/4"
- Dimension (C): 4-1/2"
- Dimension (D): 6-1/4"
- Dimension (E): 10-3/4"
- Dimension (F): 10-1/4"
- Weight: 21 LBS
