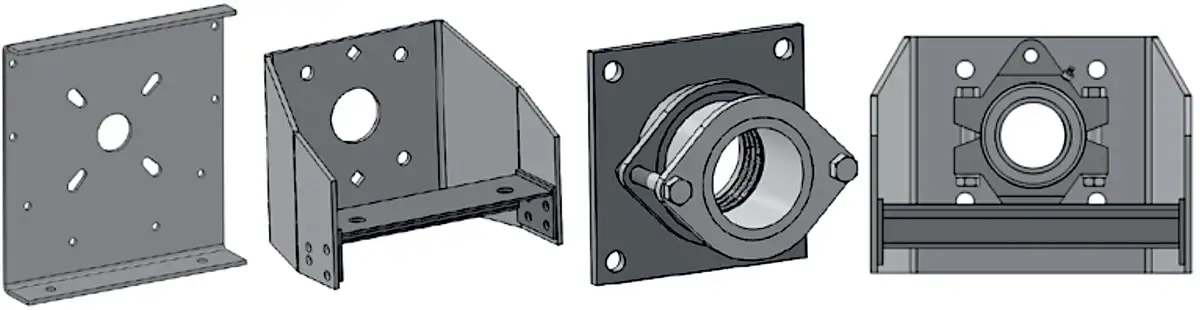

260-1607 Bolt On Shelf Trough End For 1-1/2" Shaft Size

260-1607 Bolt-On shelf trough end for 1-1/2" shaft size is designed in a way that allows for the outboard mounting of the bearing, making maintenance exponentially easier. The shelf style trough end not only offers a solid mount for the bearing, but it provides stability for drives including roller chain, v-belt, direct connect, or reducer. The drive shaft between the bearing and seal is exposed, so the bearing will also run cooler, which increases its working life. The bolt-on shelf and the optional bolt-on pump type seal are adaptable to trough ends already in use. For additional information or to get a quote on 260-1607 Bolt-On shelf trough end for 1-1/2" shaft size, contact our customer support team, and we will be happy to assist you!

Bolt-On Shelf Trough End For 1-1/2" Shaft Dimensions

• Part#: 260-1607
• Shaft Size: 1-1/2"
• Dimension (A): 8"
• Dimension (B): 3/16"
• Dimension (C): 3"
• Dimension (D): 4-1/2"
• Dimension (E): 7-1/2"
• Dimension (F): 9-3/16"
• Weight: 9 LBS
