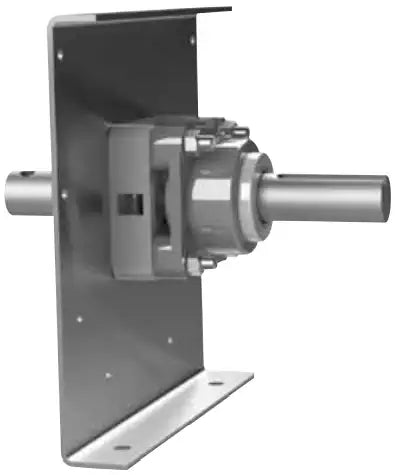

109 Trough End for 20" Conveyor and 3" CHEVRON Roller Bearing | End Shaft Without Feet

109 trough end for 20" conveyor and 3" CHEVRON roller bearing with end shaft and without feet is designed to handle medium to heavy thrust loads in either direction in any application. When starting up a screw conveyor, thrust is created in the direction opposite to the flow of material. If the thrust is not properly contained, it will wear on the hanger bearings, trough end, and screw. The Chevron bearing adequately handles these thrust loads and is recommended for screw conveyor applications rather than a self-aligning ball bearing. For more information or to get a quote on 242-2244 109 tough end for 20" conveyor and 3" CHEVRON roller bearing, contact our customer support team, and we will be happy to assist you!

109 trough end for 20" conveyor and 3" CHEVRON roller bearing Dimensions

• Part#: 242-2244
• Conveyor Diameter: 20"
• Shaft Size: 3"
• Dimension (C): 1-1/2"
• Dimension (K): 3/8"
• Dimension (B): 6"
• Dimension (D): 3"
• Dimension (E): 1"
• Dimension (F): 1"
• Dimension (G): 6-7/16"
• Dimension (H): 6-7/8"
• Dimension (J): 3/4"
• Keyseat Width: 3/4"
• Keyseat Depth: 3/8"
• Keyseat Length: 5-3/4"
• Weight: 161 LBS
