#114 Flared Trough End For 18" Screw Conveyor With 3-7/16" Babbitt Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-230-1893
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#114 Flared Trough End For 18" Screw Conveyor With 3-7/16" Babbitt Bearing Features
#114 Flared Trough End For 18" Screw Conveyor With 3-7/16" Babbitt Bearing Specifications

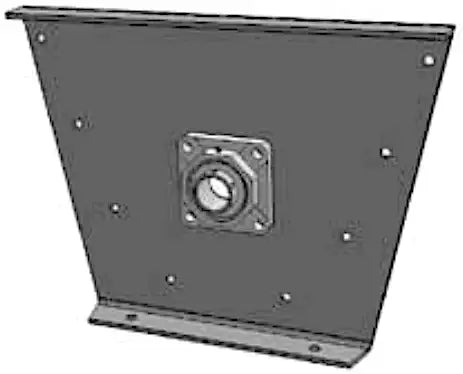

Style 114 flared trough end for 18" screw conveyor with 3-7/16" babbitt bearing is designed with a top flange to support the cover and a bottom flange which serves as feet for the screw conveyor. Our flared trough ends are manufactured from high-quality heavy-gauge steel for superior strength and holding capacity over time. 114 flared trough ends are designed to specifically fit a flared trough. Typically, 114 trough ends are fitted with a Babbitted transmission flange bearing but additional bearing types are available such as bronze, Arguto wood, nylon, bronze oilite, and it can be fitted with a Chevron or Hammond end thrust bearing as well. For more information or to get a quote on #114 flared trough end for 18" screw conveyor with 3-7/16" babbitt bearing contact us and our customer service team will be happy to assist you!
114 Flared Trough End For 18" Conveyor With 3-7/16" Bearing Dimensions
- Part #: 230-1893
- Diameter of Conveyor: 18"
- Bearing Bore: 3-7/16"
- Dimension (A): 36-1/2"
- Dimension (B): 7-3/8"
- Dimension (C): 2-1/2"
- Dimension (D): 12-1/8"
- Dimension (E): 13-3/8"
- Dimension (F): 2"
- Dimension (G): 3-1/4"
- Dimension (H): 5/8"
- Dimension (J): 16"
- Dimension (K): 3/8"
- Weight With Bearing: 185 LBS
- Part #: 230-1893
- Diameter of Conveyor: 18"
- Bearing Bore: 3-7/16"
- Dimension (A): 36-1/2"
- Dimension (B): 7-3/8"
- Dimension (C): 2-1/2"
- Dimension (D): 12-1/8"
- Dimension (E): 13-3/8"
- Dimension (F): 2"
- Dimension (G): 3-1/4"
- Dimension (H): 5/8"
- Dimension (J): 16"
- Dimension (K): 3/8"
- Weight With Bearing: 185 LBS
