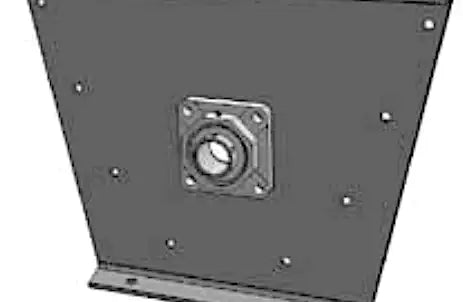

#114 Flared Trough End For 14" Screw Conveyor With 3" Ball Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-230-0630
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#114 Flared Trough End For 14" Screw Conveyor With 3" Ball Bearing Features
#114 Flared Trough End For 14" Screw Conveyor With 3" Ball Bearing Specifications

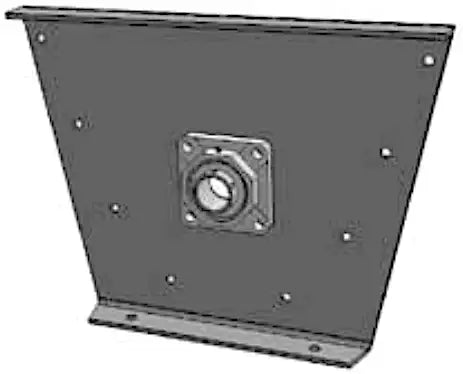

Style 114 flared trough end for 14" screw conveyor with 3" Ball bearing is designed with a top flange to support the cover and a bottom flange which serves as feet for the screw conveyor. Our flared trough ends are manufactured from high-quality heavy-gauge steel for superior strength and holding capacity over time. 114 flared trough ends are designed to specifically fit a flared trough. Typically, 114 trough ends are fitted with a transmission ball bearing but additional bearing types are available such as bronze, Arguto wood, nylon, bronze oilite, and it can be fitted with a Chevron or Hammond end thrust bearing as well. For more information or to get a quote on #114 flared trough end for 14" screw conveyor with 3" Ball bearing contact us and our customer service team will be happy to assist you!
114 Flared Trough End For 14" Conveyor With 3" Bearing Dimensions
- Part #: 230-0630
- Diameter of Conveyor: 14"
- Bearing Bore: 3"
- Dimension (A): 28-3/8"
- Dimension (B): 5-5/16"
- Dimension (C): 2"
- Dimension (D): 11"
- Dimension (E): 10-7/8"
- Dimension (F): 1-5/8"
- Dimension (G): 2-7/8"
- Dimension (H): 5/8"
- Dimension (J): 13-1/2"
- Dimension (K): 5/16"
- Weight With Bearing: 110 LBS
- Part #: 230-0630
- Diameter of Conveyor: 14"
- Bearing Bore: 3"
- Dimension (A): 28-3/8"
- Dimension (B): 5-5/16"
- Dimension (C): 2"
- Dimension (D): 11"
- Dimension (E): 10-7/8"
- Dimension (F): 1-5/8"
- Dimension (G): 2-7/8"
- Dimension (H): 5/8"
- Dimension (J): 13-1/2"
- Dimension (K): 5/16"
- Weight With Bearing: 110 LBS
