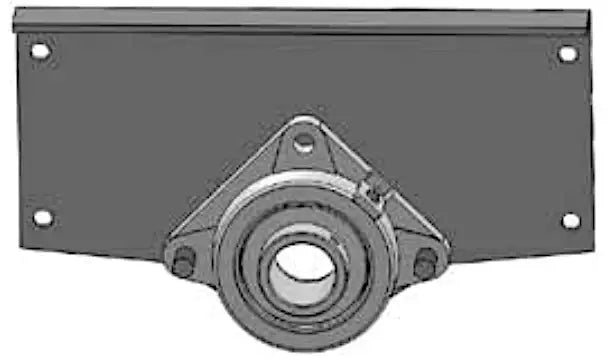

#104 Discharge Trough End For 18" Screw Conveyor With 3" Bearing
SKU: 7222-220-0913
Only 0 left in stockItem is out of stock
Item is unavailable
#104 Discharge Trough End For 18" Screw Conveyor With 3" Bearing Features
#104 Discharge Trough End For 18" Screw Conveyor With 3" Bearing Specifications
Style 104 discharge trough end for 18" screw conveyor with 3" bearing is designed for applications where the material is to flow out of the end of the trough and the load does not exceed 45%. Style 104 is fitted with a self-aligning ball bearing. Our discharge trough ends are manufactured from high-grade heavy-gauge steel to ensure a long term working life and performance in an array of screw conveyor applications. For additional information on a 104 discharge trough end for 18" screw conveyor with 3" bearing or to get a quote contact our customer service team and we will be happy to assist you!
104 Discharge Trough End For 18" Conveyor With 3" Bearing Dimensions
- Part#: 220-0913
- Diameter of Conveyor: 18"
- Bearing Bore: 3"
- Dimension (A): 24-1/4"
- Dimension (B): 3-7/8"
- Dimension (C): 2-1/2"
- Dimension (D): 12-1/8"
- Dimension (K): 3/8"
- Weight: 57 LBS
- Part#: 220-0913
- Diameter of Conveyor: 18"
- Bearing Bore: 3"
- Dimension (A): 24-1/4"
- Dimension (B): 3-7/8"
- Dimension (C): 2-1/2"
- Dimension (D): 12-1/8"
- Dimension (K): 3/8"
- Weight: 57 LBS
