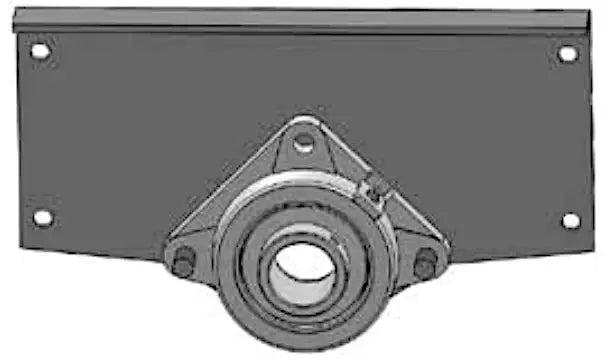

#104 Discharge Trough End For 14" Screw Conveyor With 2-7/16" Bearing

#104 Discharge Trough End For 14" Screw Conveyor With 2-7/16" Bearing

Note: Custom Cut to Length Chain Also Available
Product Code: 7222-220-0707
Shipping calculated at checkout.
View full details
Style 104 discharge trough end for 14" screw conveyor with 2-7/16" bearing is designed for applications where the material is to flow out of the end of the trough and the load does not exceed 45%. Style 104 is fitted with a self-aligning ball bearing. Our discharge trough ends are manufactured from high-grade heavy-gauge steel to ensure a long term working life and performance in an array of screw conveyor applications. For additional information on a 104 discharge trough end for 14" screw conveyor with 2-7/16" bearing or to get a quote contact our customer service team and we will be happy to assist you!

104 Discharge Trough End For 14" Conveyor With 2-7/16" Bearing Dimensions


  • Part#: 220-0707
  • Diameter of Conveyor: 14"
  • Bearing Bore: 2-7/16"
  • Dimension (A): 19-1/4"
  • Dimension (B): 3"
  • Dimension (C): 2"
  • Dimension (D): 9-1/4"
  • Dimension (K): 5/16"
  • Weight: 32 LBS


Feature

  • High-Strength Trough End
  • Engineered For Long-Term Performance
  • Made From Heavy-Gauge Steel
  • Precision Manufactured For Easy Install
Featured image
  • Part#: 220-0707
  • Diameter of Conveyor: 14"
  • Bearing Bore: 2-7/16"
  • Dimension (A): 19-1/4"
  • Dimension (B): 3"
  • Dimension (C): 2"
  • Dimension (D): 9-1/4"
  • Dimension (K): 5/16"
  • Weight: 32 LBS
