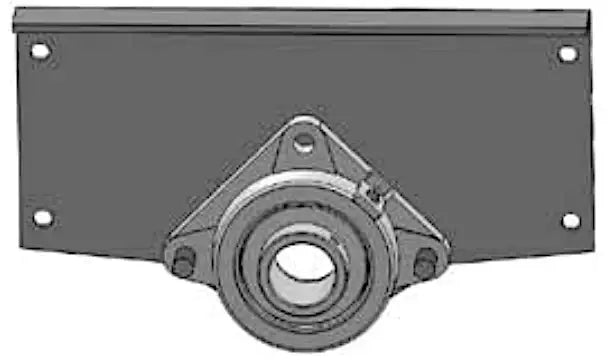

#104 Discharge Trough End For 12" Screw Conveyor With 3" Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-220-0632
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#104 Discharge Trough End For 12" Screw Conveyor With 3" Bearing Features
#104 Discharge Trough End For 12" Screw Conveyor With 3" Bearing Specifications
Style 104 discharge trough end for 12" screw conveyor with 3" bearing is designed for applications where the material is to flow out of the end of the trough and the load does not exceed 45%. Style 104 is fitted with a self-aligning ball bearing. Our discharge trough ends are manufactured from high-grade heavy-gauge steel to ensure a long term working life and performance in an array of screw conveyor applications. For additional information on a 104 discharge trough end for 12" screw conveyor with 3" bearing or to get a quote contact our customer service team and we will be happy to assist you!
104 Discharge Trough End For 12" Conveyor With 3" Bearing Dimensions
- Part#: 220-0632
- Diameter of Conveyor: 12"
- Bearing Bore: 3"
- Dimension (A): 17-1/4"
- Dimension (B): 3-3/4"
- Dimension (C): 2"
- Dimension (D): 7-3/4"
- Dimension (K): 1/4"
- Weight: 36 LBS
- Part#: 220-0632
- Diameter of Conveyor: 12"
- Bearing Bore: 3"
- Dimension (A): 17-1/4"
- Dimension (B): 3-3/4"
- Dimension (C): 2"
- Dimension (D): 7-3/4"
- Dimension (K): 1/4"
- Weight: 36 LBS
