#104 Discharge Trough End For 12" Screw Conveyor With 2-7/16" Bearing
SKU: 7222-220-0566
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
#104 Discharge Trough End For 12" Screw Conveyor With 2-7/16" Bearing Description/Features
#104 Discharge Trough End For 12" Screw Conveyor With 2-7/16" Bearing Specifications

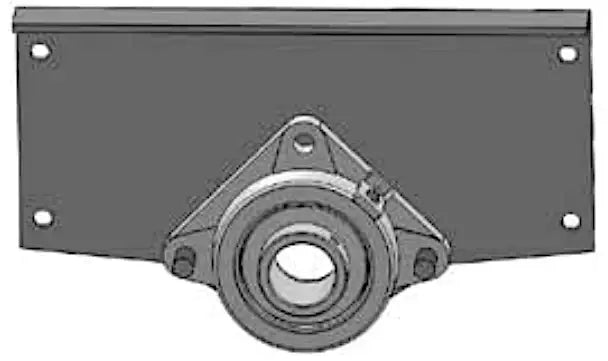

Style 104 discharge trough end for 12" screw conveyor with 2-7/16" bearing is designed for applications where the material is to flow out of the end of the trough and the load does not exceed 45%. Style 104 is fitted with a self-aligning ball bearing. Our discharge trough ends are manufactured from high-grade heavy-gauge steel to ensure a long term working life and performance in an array of screw conveyor applications. For additional information on a 104 discharge trough end for 12" screw conveyor with 2-7/16" bearing or to get a quote contact our customer service team and we will be happy to assist you!
104 Discharge Trough End For 12" Conveyor With 2-7/16" Bearing Dimensions
- Part#: 220-0566
- Diameter of Conveyor: 12"
- Bearing Bore: 2-7/16"
- Dimension (A): 17-1/4"
- Dimension (B): 2-15/16"
- Dimension (C): 2"
- Dimension (D): 7-3/4"
- Dimension (K): 1/4"
- Weight: 27 LBS
- Part#: 220-0566
- Diameter of Conveyor: 12"
- Bearing Bore: 2-7/16"
- Dimension (A): 17-1/4"
- Dimension (B): 2-15/16"
- Dimension (C): 2"
- Dimension (D): 7-3/4"
- Dimension (K): 1/4"
- Weight: 27 LBS
