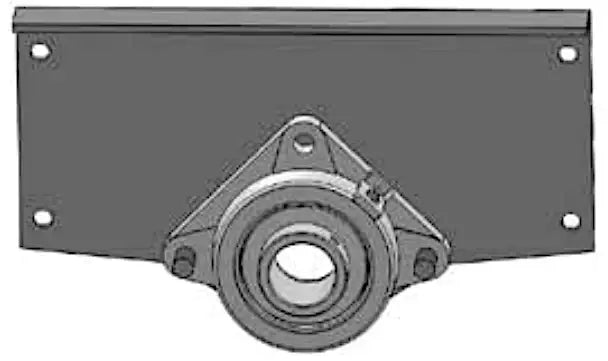

#104 Discharge Trough End For 9" Screw Conveyor With 1-1/2" Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-220-0210
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#104 Discharge Trough End For 9" Screw Conveyor With 1-1/2" Bearing Features
#104 Discharge Trough End For 9" Screw Conveyor With 1-1/2" Bearing Specifications
Style 104 discharge trough end for 9" screw conveyor with 1-1/2" bearing is designed for applications where the material is to flow out of the end of the trough and the load does not exceed 45%. Style 104 is fitted with a self-aligning ball bearing. Our discharge trough ends are manufactured from high-grade heavy-gauge steel to ensure a long term working life and performance in an array of screw conveyor applications. For additional information on a 104 discharge trough end for 9" screw conveyor with 1-1/2" bearing or to get a quote contact our customer service team and we will be happy to assist you!
104 Discharge Trough End For 9" Conveyor With 1-1/2" Bearing Dimensions
- Part#: 220-0210
- Diameter of Conveyor: 9"
- Bearing Bore: 1-1/2"
- Dimension (A): 13-1/2"
- Dimension (B): 2-5/16"
- Dimension (C): 1-5/8"
- Dimension (D): 6-1/8"
- Dimension (K): 1/4"
- Weight: 14 LBS
- Part#: 220-0210
- Diameter of Conveyor: 9"
- Bearing Bore: 1-1/2"
- Dimension (A): 13-1/2"
- Dimension (B): 2-5/16"
- Dimension (C): 1-5/8"
- Dimension (D): 6-1/8"
- Dimension (K): 1/4"
- Weight: 14 LBS
