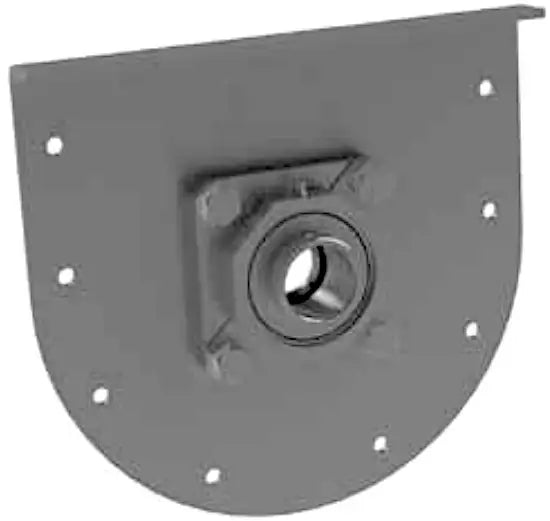

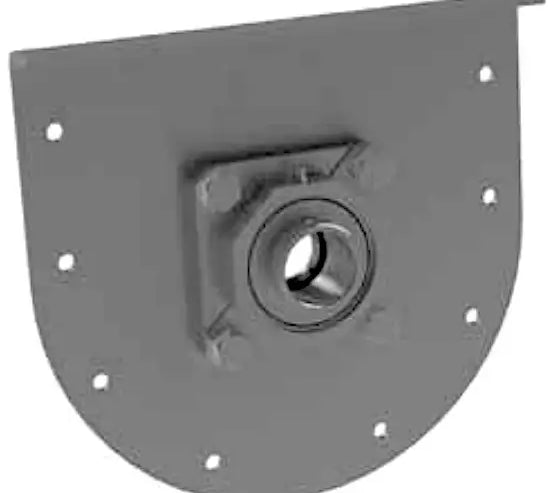

#102 Trough End For 4" Screw Conveyor With 1" Bearing | Without Feet
SKU: 7222-212-2034
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
#102 Trough End For 4" Screw Conveyor With 1" Bearing | Without Feet Description/Features
#102 Trough End For 4" Screw Conveyor With 1" Bearing | Without Feet Specifications
Style 102 trough end for 4" screw conveyor with 1" bearing without feet is classified as an anti-friction trough end and is equipped with self-aligning ball bearings that allow for several degrees of end shaft misalignment. Because of the use of ball bearings these trough ends are not recommended for use with the drive end unless it is a very light-duty application. For additional information or to get a quote on 102 trough end for 4" screw conveyor with 1" bearing contact our customer support team and we will be happy to assist you!
102 Trough End For 4" Conveyor With 1" Bearing Dimensions
- Part#: 212-2034
- Diameter of Conveyor: 4"
- Bearing Bore: 1"
- Dimension (B): 1-5/8"
- Dimension (C): 3/16"
- Dimension (D): 3-3/8"
- Weight: 6LBS
- Part#: 212-2034
- Diameter of Conveyor: 4"
- Bearing Bore: 1"
- Dimension (B): 1-5/8"
- Dimension (C): 3/16"
- Dimension (D): 3-3/8"
- Weight: 6LBS
