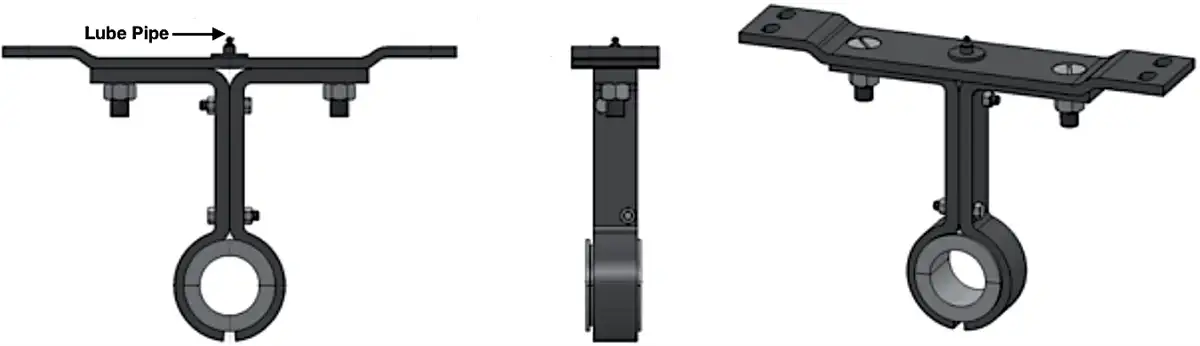

6" Screw Conveyor Hanger for 1-1/2" Shaft | Style 220 With Lube Pipe

Style 220 6" screw conveyor hanger for 1-1/2" shaft is one of the most popular styles used due to an innovative design that offers fantastic screw support and the least possible obstruction to the flow of material. This 175-0918 configuration does feature a lube pipe and is made for 6" diameter screw conveyors using a 1-1/2" diameter shaft. The style 220 hanger features wider top bars for greater stability when mounting across the flange joints of the trough. Standard bearing styles used include; Babbitt, Hard Iron, Arguto Wood, Bronze, and Nylon or Nylatron; also available on special order is Bronze Oilite, Gatke, Stellite, Teflon or practically any conceivable bearing material. For additional information or to get pricing please contact our customer service team and we will be happy to assist you.

Style 220 6" Conveyor Hanger For 1-1/2" Shaft Dimensions

• Hanger Type: 220
• Part #: 175-0918
• Diameter of Conveyor: 6"
• Bearing Bore: 1-1/2"
• Weight: 6 LBS
• Bearing Length: 2"
• Dimension (A): 7"
• Dimension (B): 9-3/4"
• Dimension (C): 8-3/4"
• Dimension (D): 4-1/2"
• Dimension (E): 4"
• Dimension (F): 1/4"
• Dimension (G): 2-1/2"
• Dimension (H): 3/8"
• Dimension (J): 3/4"
• Dimension (K): 6"
