16" Screw Conveyor Hanger for 3" Shaft | Style 230 With Iron Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-161-0849
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
16" Screw Conveyor Hanger for 3" Shaft | Style 230 With Iron Bearing Features
16" Screw Conveyor Hanger for 3" Shaft | Style 230 With Iron Bearing Specifications

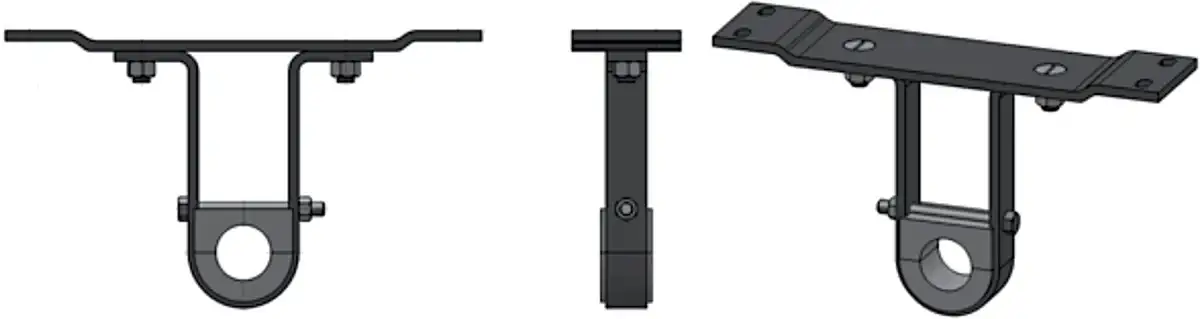

Style 230 16" screw conveyor hanger for 3" shaft is designed for the most severe and abrasive screw conveyor applications. This 161-0849 configuration features a hard iron-bearing and is made for 16" diameter screw conveyors using a 3" diameter shaft. The style 230 hanger features wider top bars for greater stability when mounting across the trough's flange joints. Standard bearings used in these frames due to their application type is hard-iron; however, Arguto wood bearings are also readily available. For additional information or to get pricing, please contact our customer service team, and we will be happy to assist you.
Style 230 16" Conveyor Hanger For 3" Shaft Dimensions
- Hanger Type: 230
- Part #: 161-0849
- Diameter of Conveyor: 16"
- Bearing Bore: 3"
- Weight: 28 LBS
- Bearing Length: 3"
- Dimension (A): 17"
- Dimension (B): 21-1/2"
- Dimension (C): 19-3/4"
- Dimension (D): 10-5/8"
- Dimension (E): 4"
- Dimension (F): 1/2"
- Dimension (G): 2-1/2"
- Dimension (H): 1/2"
- Dimension (J): 1-3/8"
- Dimension (K): 6-1/2"
- Hanger Type: 230
- Part #: 161-0849
- Diameter of Conveyor: 16"
- Bearing Bore: 3"
- Weight: 28 LBS
- Bearing Length: 3"
- Dimension (A): 17"
- Dimension (B): 21-1/2"
- Dimension (C): 19-3/4"
- Dimension (D): 10-5/8"
- Dimension (E): 4"
- Dimension (F): 1/2"
- Dimension (G): 2-1/2"
- Dimension (H): 1/2"
- Dimension (J): 1-3/8"
- Dimension (K): 6-1/2"
