12" Screw Conveyor Hanger for 2" Shaft | Style 216 With Iron Bearing

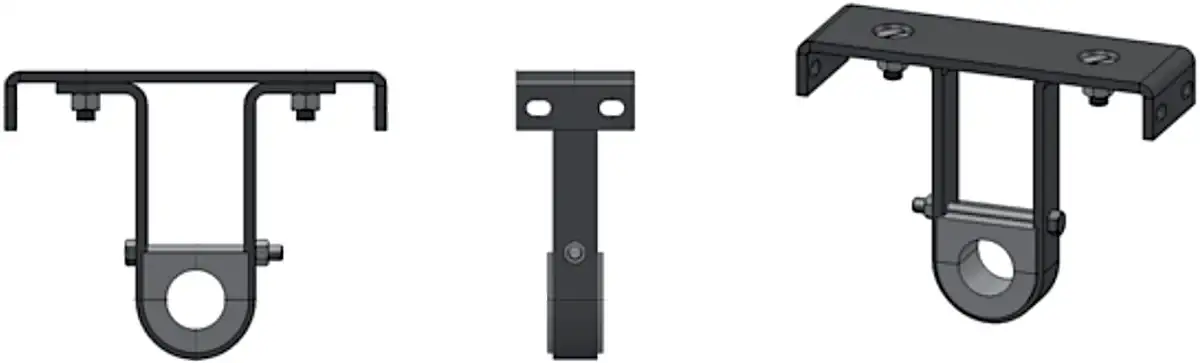

Style 216 12" screw conveyor hanger for 2" shaft is designed for the most severe and abrasive screw conveyor applications. This 160-0493 configuration features a hard iron-bearing and is made for 12" diameter screw conveyors using a 2" diameter shaft, style 216 also mounts completely inside of the trough so it is suitable for dust-tight and weather-tight covers. The style 216 hanger features wider top bars for greater stability when mounting across the trough's flange joints. Standard bearings used in these frames due to their application type is hard-iron; however, Arguto wood bearings are also readily available. For additional information or to get pricing, please contact our customer service team, and we will be happy to assist you.

Style 216 12" Conveyor Hanger For 2" Shaft Dimensions

• Hanger Type: 216
• Part #: 160-0493
• Diameter of Conveyor: 12"
• Bearing Bore: 2"
• Weight: 14 LBS
• Bearing Length: 2"
• Dimension (A): 13"
• Dimension (B): 17-1/2"
• Dimension (C): 15-3/4"
• Dimension (D): 7-3/4"
• Dimension (E): 4"
• Dimension (F): 3/8"
• Dimension (G): 2-1/2"
• Dimension (H): 1/2"
• Dimension (J): 1-1/4"
• Dimension (K): 6-1/2"
