Power Transmission > Screw Conveyors & Parts > Screw Conveyor Assembly Bolts

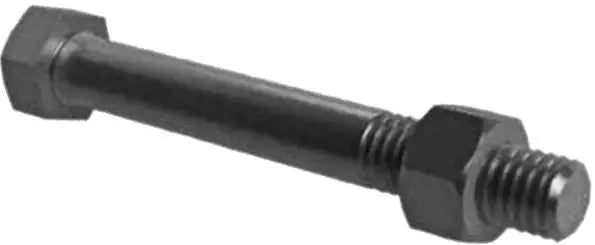

3/4" X 5-1/2" Screw Conveyor Coupling Bolt | 155-6257 Bolt
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-155-6257-BOLT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
3/4" X 5-1/2" Screw Conveyor Coupling Bolt | 155-6257 Bolt Features
3/4" X 5-1/2" Screw Conveyor Coupling Bolt | 155-6257 Bolt Specifications
155-6257 3/4" X 5-1/2" screw conveyor coupling bolt is a TEM-U-LAC style bolt and nut assembly that is forged from special high-analysis steel to give it the strength and durability for its intended use. This screw conveyor coupling bolt is made specially with a specific thread length and nut that won't interfere with or damage the screw conveyor pipe walls, which would result in damage to the system. Within the lock itself, there is a unique stainless steel locking pin that follows the bolt thread while the nut is being tightened town; this pin prevents the bolt from unthreading its self even under extreme vibration. Yet, the nut containing this pin will easily loosen with a standard wrench when pressure is applied. For additional information or to get a quote on 3/4" X 5-1/2" screw conveyor coupling bolts, contact our customer service team, and we will be happy to assist you!
155-6257 Screw Conveyor Coupling Bolt Dimensions
- Shaft Diameter: 4"
- Pipe Size: 4"
- Bolt Size: 3/4" X 5-1/2"
- Part #: 155-6257
- Weight (LBS): 0.88
- Dimension (A): 1-1/8"
- Dimension (B): 3/4"
- Shaft Diameter: 4"
- Pipe Size: 4"
- Bolt Size: 3/4" X 5-1/2"
- Part #: 155-6257
- Weight (LBS): 0.88
- Dimension (A): 1-1/8"
- Dimension (B): 3/4"
