147-0343 1-1/2" Screw Conveyor Coupling Shaft | Cold Rolled Steel

Note: Custom Cut to Length Chain Also Available
SKU: 7222-147-0343-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714770534767" , "metafield_value":""}]
147-0343 1-1/2" Screw Conveyor Coupling Shaft | Cold Rolled Steel Features
147-0343 1-1/2" Screw Conveyor Coupling Shaft | Cold Rolled Steel Specifications

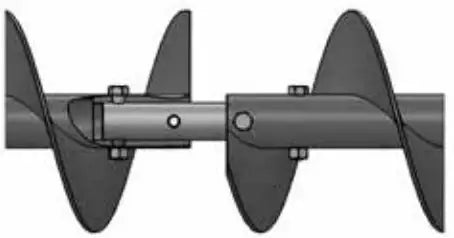

147-0343 1-1/2" screw conveyor coupling shaft is manufactured for high-torque applications and made from a select-grade of cold-rolled steel that is precision machined. What separates the high-torque coupling shaft from others is the placement of three coupling bolts instead of two; these shafts are jig-drilled to exactly match the conveyor pipe. Standard cold rolled 1-1/2" coupling shafts are recommended for any non-abrasive material screw conveyor applications. For abrasive application, we recommend upgrading to a hardened steel coupling shaft.

147-0343 1-1/2" Screw Conveyor Coupling Shaft Dimensions

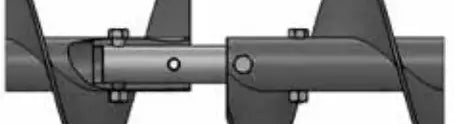

147-0343 1-1/2" Screw Conveyor Coupling Shaft | Cold Rolled Steel
  • Part #: 147-0343
  • Shaft Size: 1-1/2"
  • Dimension (B): 17-1/2"
  • Dimension (C): 7/8"
  • Dimension (D): 3"
  • Dimension (E): 7/8"
  • Dimension (F): 1/2"
  • Dimension (G): 2"
  • Weight (LBS): 8.5

  • Part #: 147-0343
  • Shaft Size: 1-1/2"
  • Dimension (B): 17-1/2"
  • Dimension (C): 7/8"
  • Dimension (D): 3"
  • Dimension (E): 7/8"
  • Dimension (F): 1/2"
  • Dimension (G): 2"
  • Weight (LBS): 8.5
