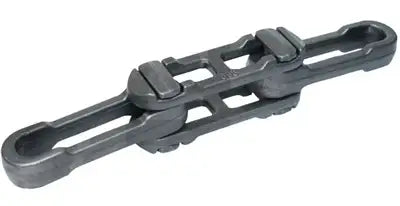

698 Chain With Threaded Pin Every 4th Pitch
Note:
Custom Cut to Length Chain Also Available
SKU: 698-D1-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
698 Chain With Threaded Pin Every 4th Pitch Features
698 Chain With Threaded Pin Every 4th Pitch Specifications
698 mining chain features high-strength precision threaded pins every 4th pitch and is used in various mining operation applications. Forged from high-grade steels, our 698 chain with extended pins showcases an average ultimate strength of 130,000 LBS. It is highly resistant to abrasion while performing perfectly in even the harshest applications. We typically supply this chain in 10' coils, but alternative lengths can be supplied upon request. Additionally, we offer different extended pin options as well as 698 mining chain sprockets. For more information or to get a quote on our premium 698 mining chain with extended pins, contact our customer service team, and we will be happy to assist you!
698 Extended Pin Chain Dimensions
- Chain Size: 698
- Pitch (P): 6.031"
- Average Tensile Strength: 130,000 LBS
- Dimension (X1): 1.00"
- Dimension (X): 1.56"
- Dimension (D6): 1.13"
- Dimension (H): 2.52"
- Dimension (S): 0.63"
- Dimension (F1): 3.75"
- Dimension (T): 1.50"
- Dimension (M): 0.75"
- Weight: 12.1 LBS/ FT
- Chain Size: 698
- Pitch (P): 6.031"
- Average Tensile Strength: 130,000 LBS
- Dimension (X1): 1.00"
- Dimension (X): 1.56"
- Dimension (D6): 1.13"
- Dimension (H): 2.52"
- Dimension (S): 0.63"
- Dimension (F1): 3.75"
- Dimension (T): 1.50"
- Dimension (M): 0.75"
- Weight: 12.1 LBS/ FT
