6867 Chain Description/Features
6867 Chain Specifications
This 6867 chain is a high quality, high strength steel bushed chain that is extremely durable. 6867 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 6867 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

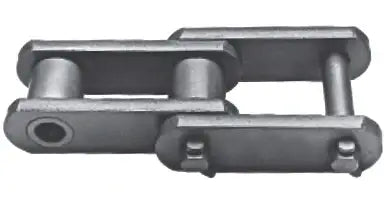

6867 Chain
  • Chain Size: 6867
  • Pitch: 6.00"
  • Overall Width (A): 6.13"
  • Dimension (B): 3.25"
  • Dimension (C): 2.88"
  • Inside Width (E): 3.00"
  • Bushing Diameter (D): 1.75"
  • Bushing Style: Full Round
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Heat-Treated and Induction-Hardened
  • Pin Style: Full Round
  • Sidebar Height (H): 3.25"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Alloy Heat-Treated
  • Average Ultimate Strength: 175,000 LBS
  • Maximum Working Load: 14,000 LBS
  • Weight Per Foot: 21.0 LBS
