6826 Wash Box Chain | 6826 Jig Washer Chain

6826 wash box chain is also commonly referred to as 6826 jig washer chain; it is utilized in many mining operations, especially coal mining. Our 6826 chain is made from high-grade steel alloys, features precision components, and implements specific heat treatments for improved wear life and performance. , wash box chains are used in wet coal washers; the highly abrasive environment is demanding and considered one of the harshest chain applications on earth. Our 6826 chain has been designed and manufactured for the optimal lifespan in wash box applications; additionally, our chain interchanges with other manufacturers! For more information or to get a quote on our 6826 jig washer chain or sprockets, contact our customer support team, and we will be happy to assist you!

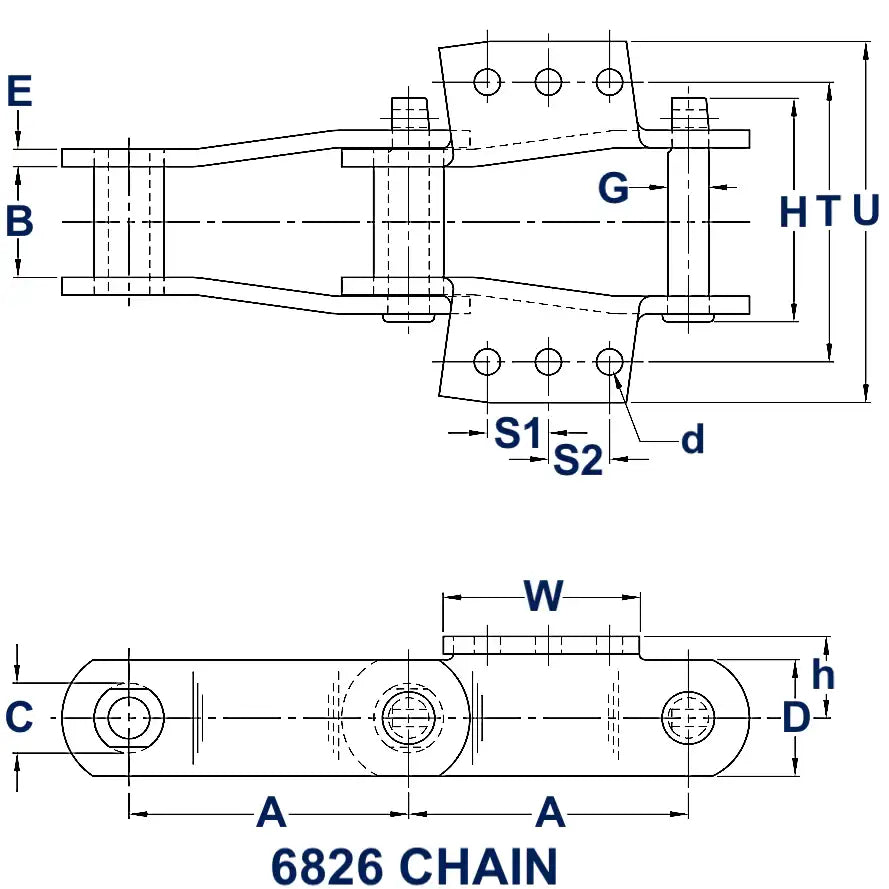

6826 Chain Dimensions

• Chain Size: 6826
• Pitch (A): 6.00"
• Dimension (B): 2.375"
• Dimension (C): 1.500"
• Dimension (D): 2.500"
• Dimension (E): 0.375"
• Dimension (F): 0.375"
• Dimension (G): 0.875"
• Dimension (H): 4.953"
• Dimension (T): 6.00"
• Dimension (U): 7.749"
• Dimension (d): 0.563"
• Dimension (h): 1.75"
• Dimension (S1): 1.313"
• Dimension (S2): 1.313"
• Dimension (w): 4.000"
• Average Ultimate Strength: 95,000 LBS
• Rated Working Load: 9,570 LBS
• Weight: 15.0 LBS/ FT
