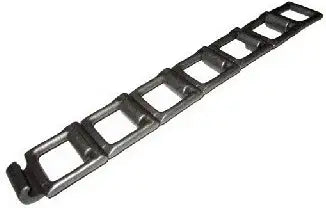

67 Cast Detachable Chain - Type A

This size 67 cast detachable chain type A style is manufactured using the latest manufacturing techniques to produce a high-strength and long-lasting cast detachable chain at an economical price. Since the invention of cast detachable chains in 1873 these chains have been used in various applications such as agricultural, conveying, and even the palm oil industry. What makes 67 cast detachable chain desirable and easy to use in applications is it's light-weight yet high-strength features, it is also extremely easy to maintain and replace. We typically supply this chain in 10ft coils, and we can also supply cast detachable attachments as well as detachable chain sprockets. To get a quote or for additional information on 67 cast detachable chain type A (or Type-B) please contact us and we will be happy to assist you.

67 Cast Detachable Chain Dimensions

• Dimension (P): 2.323"
• Overall Width (A): 2.559"
• Diameter of Crossbar (C): 0.394"
• Max Sprocket Face (E): 1.142"
• Number of Links per 10ft: 52
• Average Ultimate Strength: 5,500 LBS
• Weight Per Ft: 2.51 LBS
