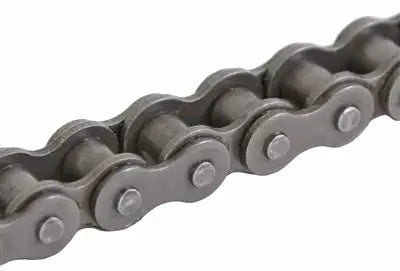

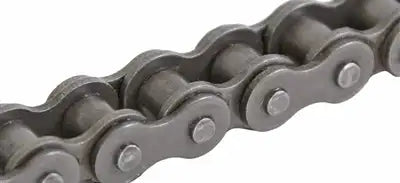

ANSI #65 Roller Chain - 10ft Box
Note:
Se Habla Espanol
$39.99
SKU: 65-CHAIN-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
ANSI #65 Roller Chain - 10ft Box Description/Features
ANSI #65 Roller Chain - 10ft Box Specifications
The 65 roller chain is a non-standard series roller chain that is commonly an in-stock item for USA Roller Chain. It has a 1/2" pitch and is manufactured in accordance with the American National Standards Institute (ANSI) B29.1 Standard, meaning it is interchangeable with chains made by other manufacturers. A notable feature of this chain is that it also directly interchanges with #43- and #410-size chains. Chains may have different part numbers but the same dimensions; this is the result of original manufacturers of ANSI chains using different designations. See the chart below for dimensional comparisons.
A few features that set our #65 roller chain apart from others include the use of solid rollers for extended wear life and improved performance, high-quality lubricant that is applied at the factory level, heat-treated shot-peened components (pins, bushings, rollers, side plates), and pre-stretching at the time of manufacture for decreased chain stretch. Also, for applications that require an extreme-performance 65 roller chain, we stock this product in our "Premier Series," which offers higher strengths and implements solid bushings to accompany the solid rollers for less friction and improved performance.

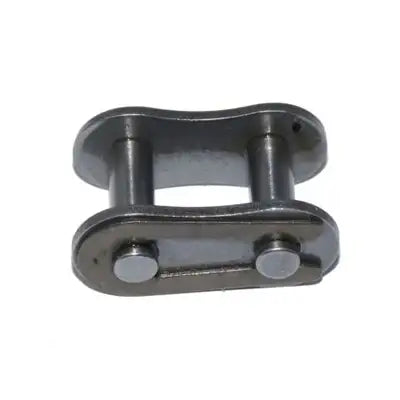

The lightweight industrial-duty aspects of this chain make it ideal for many conveying systems that run at low or high speeds. Its space-saving narrow design also adds an additional layer of versatility when design engineers are determining what chain to use. Please note that due to the size of this chain, it is recommended to only use spring-clip-style connecting links (master links).
Additionally, we supply #65 roller chain sprockets and can manufacture custom fitting attachments based on quantities needed. For additional information or to get a quote, please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Click Here To See Our Other Products!
65, 43, and 410 Roller Chain Comparision Chart:
|
Chain Size
|
Pitch
|
Roller Width
|
Roller Diameter
|
Overall Width
|
Plate Height
|
Plate Thickness
|
Pin Diameter
|
Tensile Strength (LBS)
|
Weight (LBS/ FT)
|
|---|---|---|---|---|---|---|---|---|---|
| 65 | 0.500" | 0.125" | 0.305" | 0.364" | 0.390" | 0.040" | 0.142" | 2,210 | 0.19 |
| 43 | 0.500" | 0.125" | 0.305" | 0.364" | 0.390" | 0.040" | 0.142" | 2,210 | 0.19 |
| 410 | 0.500" | 0.125" | 0.305" | 0.364" | 0.390" | 0.040" | 0.142" | 2,210 | 0.19 |
The lightweight industrial-duty aspects of this chain make it ideal for many conveying systems that run at low or high speeds. Its space-saving narrow design also adds an additional layer of versatility when design engineers are determining what chain to use. Please note that due to the size of this chain, it is recommended to only use spring-clip-style connecting links (master links).
Standard 65 chain lengths:
- 10ft Box
- 50ft Reel
- 100ft Reel
- 250ft Reel
- 500ft Reel
Additionally, we supply #65 roller chain sprockets and can manufacture custom fitting attachments based on quantities needed. For additional information or to get a quote, please contact us and we will be happy to assist you.
65 Roller Chain Dimensions
- Chain Size: 65
- Pitch (P): 0.500"
- Roller Width (W): 0.125"
- Roller Diameter (D): 0.305"
- Overall Chain Width: 0.364"
- Overall Connecting Link Width (F): 0.408"
- Link Plate Height (H): 0.390"
- Link Plate Thickness (T): 0.040"
- Pin Diameter (E): 0.142"
- Average Ultimate Strength: 2,210 LBS
- Weight Per Ft: 0.19 LBS
- Interchanges: 65-1, RS65, RC65
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Click Here To See Our Other Products!
- Chain Size: 65
- Pitch (P): 0.500"
- Roller Width (W): 0.125"
- Roller Diameter (D): 0.305"
- Overall Chain Width: 0.364"
- Overall Connecting Link Width (F): 0.408"
- Link Plate Height (H): 0.390"
- Link Plate Thickness (T): 0.040"
- Pin Diameter (E): 0.142"
- Average Ultimate Strength: 2,210 LBS
- Weight Per Ft: 0.19 LBS
