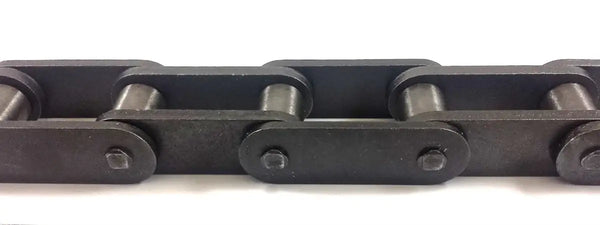

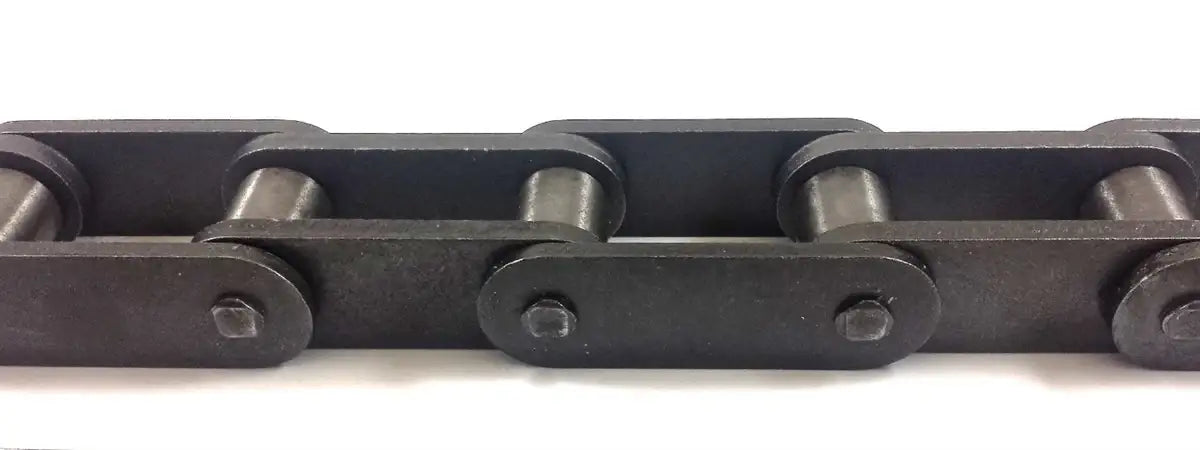

64S Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 64S-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
64S Chain Features
64S Chain Specifications
This 64S chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on 64S chain! 64S chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. 64S can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality 64S chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on 64S straight sidebar drive chain or sprockets please contact us.
Chain #: 64S Pitch: 2.500" Pin Length (F): 3.690" Inside Width (E): 1.500" Pin Diameter (G): 0.880" Pin Style: K / Fully Round Pin Material: Heat Treated & Induction Hardened Alloy Steel Roller Diameter (D): 1.560" Roller Material: Heat Treated Alloy Steel Sidebar Height (H): 2.380" Sidebar Thickness (T): 0.380" Sidebar Material: Heat Treated Alloy Steel Bushing Diameter: 1.190" Bushing Material: Case Hardened Carbon Steel Average Ultimate Strength: 125,000 LBS Maximum Working Load: 6,900 LBS Weight Per Foot: 13.1 LBS
