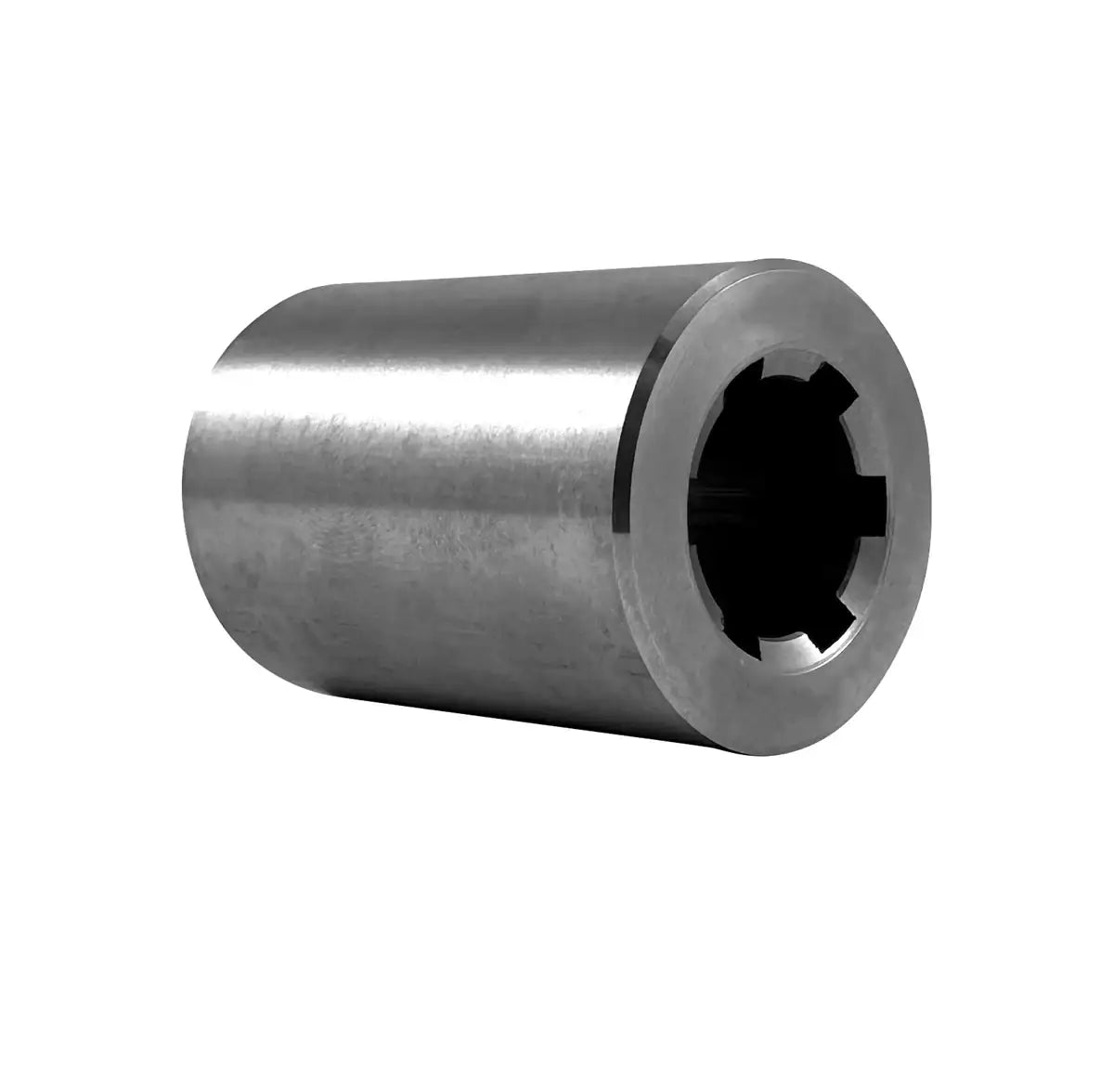

8 Spline Hub for 42mm Splined Shaft - Stainless Steel
8 Spline Hub for 42mm Splined Shaft - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
Product Code: 64899312-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Our premium 42mm spline hub, featuring 8 splines, is expertly machined from 303-grade stainless steel, making it perfect for washdown, food-grade, and abrasive environments. Built to DIN ISO 14 standards, this 8-spline hub for 42mm splined shafts ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts or providing a mounting surface. For more information or to request a quote on our high-quality stainless steel 42mm splined shaft, please contact our customer service team, and we will be happy to assist you!
42mm Splined Shaft Hub Dimensions
- Part Number: 64899312
- Material: 303 Stainless
- Profile Description: 36 X 42
- Number of Keyways: 8
- Dimension (D): 42mm
- Dimension (d): 36mm
- Dimension (b): 7mm
- Dimension (A): 70mm
- Length: 65mm
- Weight: 1.08KG
Feature
- Precision Made from Stainless Steel
- Made for 42mm Splined Shafting
- Conforms to DIN ISO 14 Standard
- Part Number: 64899312
- Material: 303 Stainless
- Profile Description: 36 X 42
- Number of Keyways: 8
- Dimension (D): 42mm
- Dimension (d): 36mm
- Dimension (b): 7mm
- Dimension (A): 70mm
- Length: 65mm
- Weight: 1.08KG
